Honda >> Jazz >> GD >> 1.5 Litre 4 Cyl L15A1 SOHC 16v >> Vti, VTI-S GD3 03/2006 - 07/2008 4 Door Hatchback >> Nason Piston & pin set

Nason Piston & pin set Fits Honda Jazz GD Vti, VTI-S GD3 Hatchback [03/2006 to 07/2008] (1.5L L15A1 4 Cyl SOHC VTEC MPFI)

Part
Nason logo

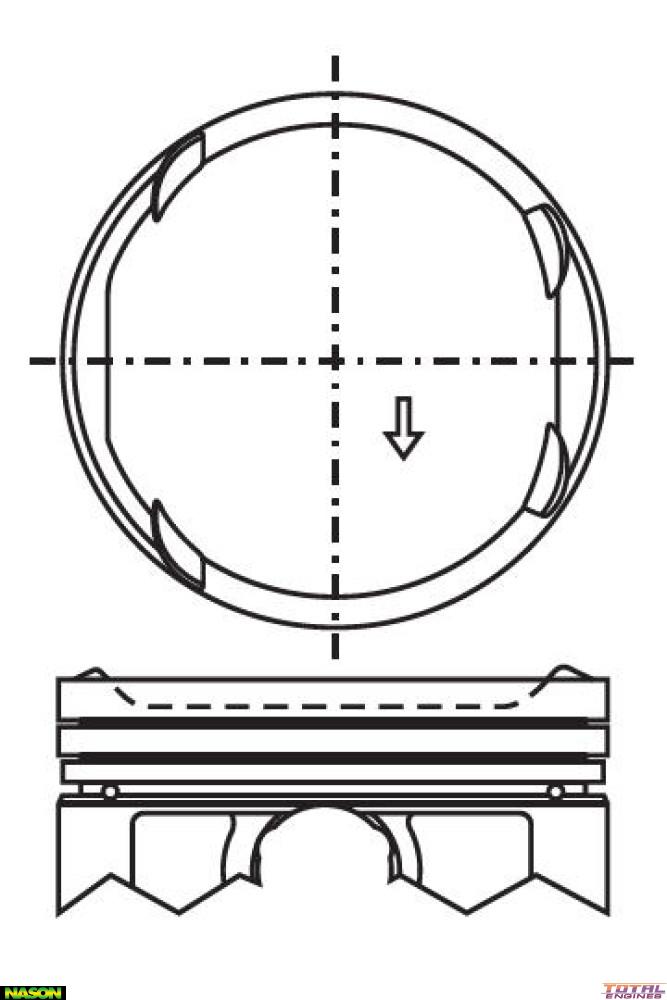

Nason Piston & pin set

Out Of Stock

Specifications
Size: 0.50mm Oversize
Ring Set: 2C5253
Oil Ring Width: 2.00mm
2nd Ring Width: 1.00mm
Top Ring Width: 1.00mm
Piston to Bore: See Label on Box
Skirt Coating: Yes
Pin Type: Press Fit
Pin Size: 18.00mm x 54.00mm
Comp Height: 26.20mm - 4.60mm
Length: 49.30mm
Piston Type: Cast
Head Type: Dish Top with 4 Valve Reliefs
Size: 0.50mm / .020"
Std Bore Size: 73.00mm
Piston Set: 4 x Piston & Pins

Tick This part will fit the following Vehicles:

Honda Jazz GD (1.5 Litre 4 Cyl L15A1 SOHC 16v):
  • Vti, VTI-S GD3 FWD Hatchback 4 Door [03/2006 to 07/2008] 81KW With Auto, Manual or Continuously Variable Transmission
Honda Jazz II (1.5 Litre 4 Cyl L15A1 SOHC 16v):
  • Vti, VTI-S GD3 FWD Hatchback 4 Door [10/2002 to 07/2008] 81KW With Auto, Manual or Continuously Variable Transmission

Description

Nason, 0.50mm Oversize
