Honda >> MDX >> YD >> 3.5 Litre V6 J35A5 SOHC 24v >> YD1 04/2003 - 04/2007 4 Door Wagon >> Nason Piston & pin set

Nason Piston & pin set Fits Honda MDX YD YD1 Wagon [04/2003 to 04/2007] (3.5L J35A5 V6 SOHC VTEC MPFI)

Part
Nason logo

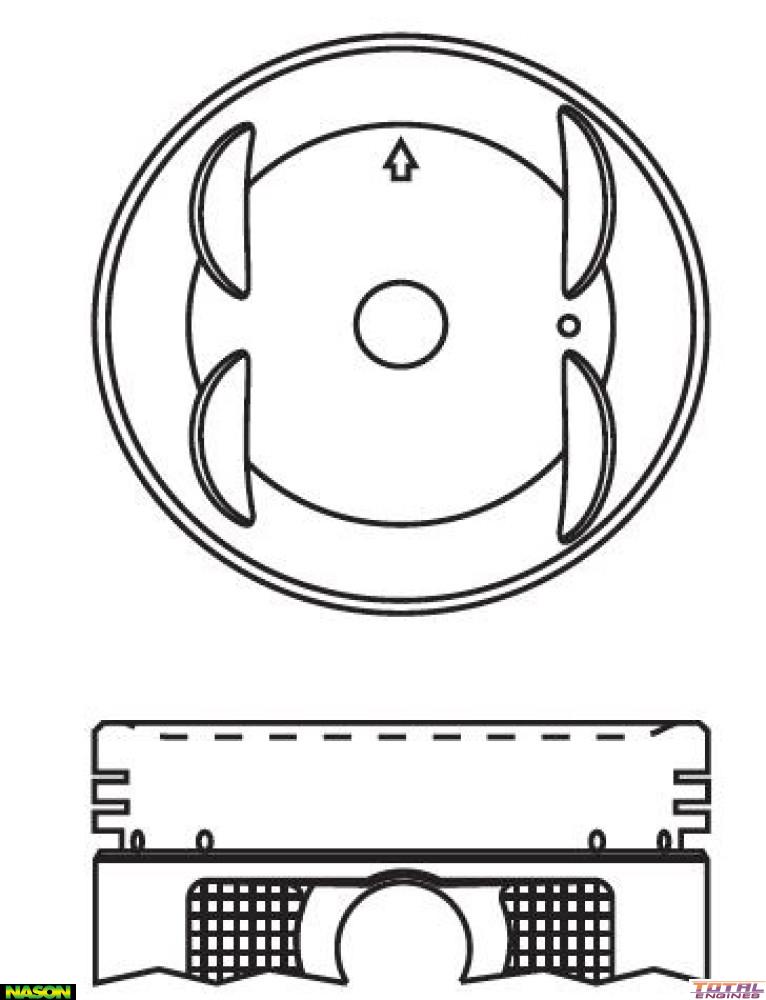

Nason Piston & pin set

Out Of Stock

Specifications
Piston Set: 6 x Piston & Pins
Std Bore Size: 89.00mm
Size: 0.50mm / .020"
Head Type: Dish Top with 4 Valve Reliefs
Piston Type: Cast
Length: 51.50mm
Comp Height: 30.00mm - 1.24mm
Pin Size: 21.96mm x 54.00mm
Pin Type: Full Floating
Skirt Coating: Yes
Piston to Bore: See Label on Box
Top Ring Width: 1.20mm
2nd Ring Width: 1.20mm
Oil Ring Width: 2.80mm
Ring Set: 2C4972
Size: 0.50mm Oversize

Tick This part will fit the following Vehicles:

Honda MDX YD (3.5 Litre V6 J35A5 SOHC 24v):
  • YD1 4WD Wagon 4 Door [04/2003 to 04/2007] 195KW With Auto Transmission

Description

Nason, 0.50mm Oversize
