Hyundai >> Accent >> X3 >> 1.5 Litre 4 Cyl G4EK SOHC 12v >> GLS UA31N 07/1994 - 11/1997 4 Door Hatchback >> Nason Piston & Pin Set

Nason Piston & Pin Set Fits Hyundai Accent X3 GLS UA31N Hatchback [07/1994 to 11/1997] (1.5L G4EK 4 Cyl SOHC EFI)

Part
Nason logo

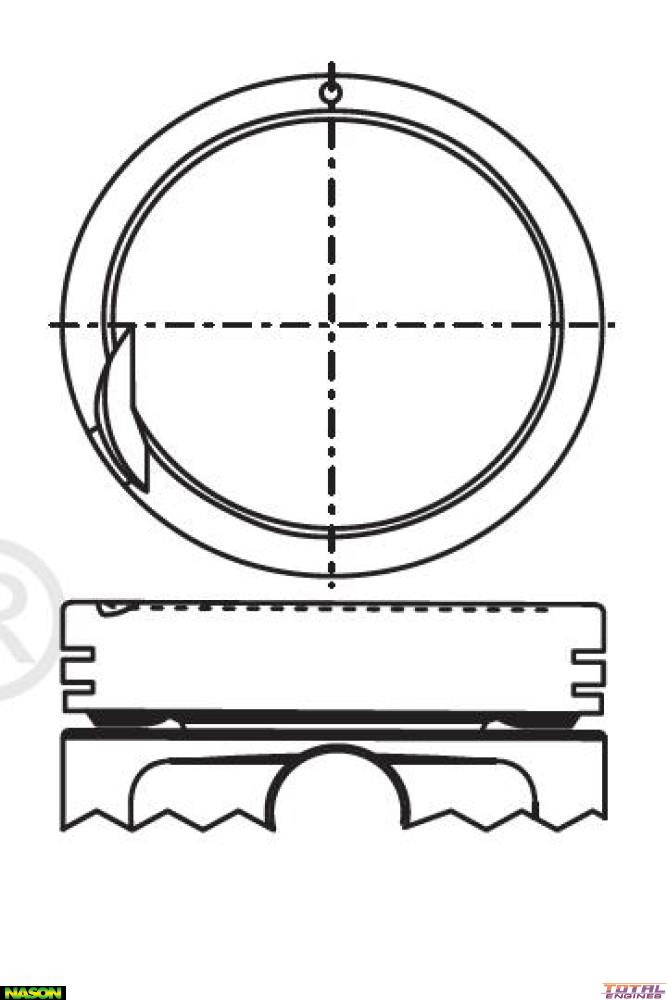

Nason Piston & Pin Set

Out Of Stock

Specifications
Piston Set: 4 x Piston & Pins
Std Bore Size: 75.50mm
Size: 0.50mm / .020"
Head Type: Dish Top with 1 Valve Relief
Piston Type: Cast
Length: 54.40mm
Comp Height: 31.30mm - 0.70mm
Pin Size: 18.00mm x 47.50mm
Pin Type: Press Fit
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 1.50mm
2nd Ring Width: 1.50mm
Oil Ring Width: 3.00mm
Ring Set: 2C4782 or 4782
Size: 0.50mm Oversize

Tick This part will fit the following Vehicles:

Hyundai Accent X3 (1.5 Litre 4 Cyl G4EK SOHC 12v):
  • GLS UA31N FWD Hatchback 4 Door [07/1994 to 11/1997] 66KW With Auto or Manual Transmission

Description

Nason, 0.50mm Oversize
