Hyundai >> Excel >> X1 >> 1.5 Litre 4 Cyl G4AJ SOHC 8v >> L HA11J 07/1987 - 12/1989 4 Door Hatchback >> Nason Piston & pin set

Nason Piston & pin set Fits Hyundai Excel X1 L HA11J Hatchback [07/1987 to 12/1989] (1.5L G4AJ 4 Cyl SOHC CARB)

Part
Nason logo

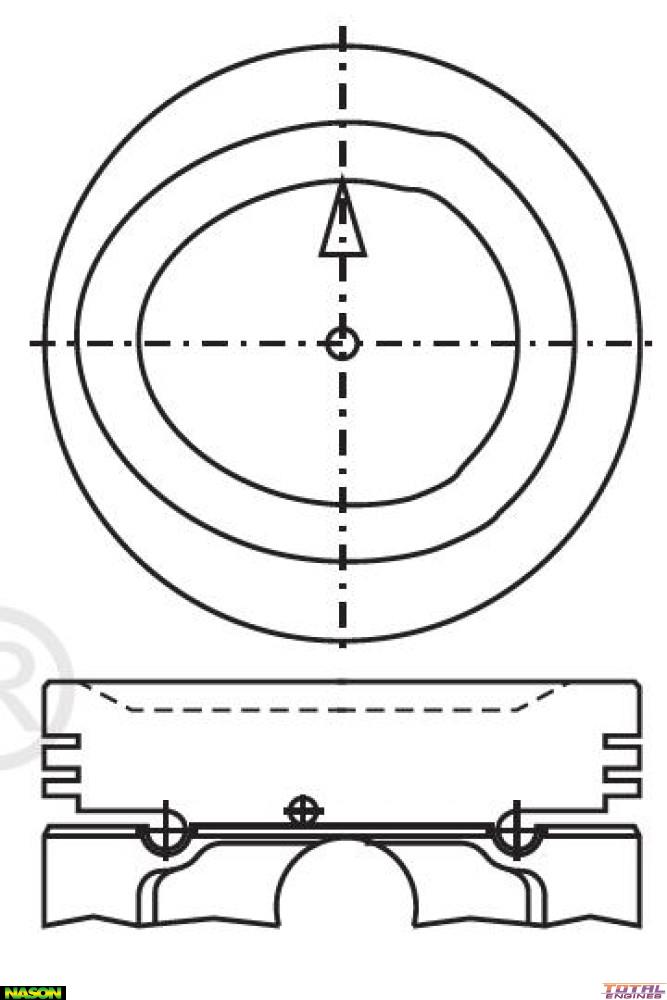

Nason Piston & pin set

$113.62

Specifications
Piston Set: 4 x Piston & Pins
Std Bore Size: 75.50mm
Size: 0.50mm / .020"
Head Type: Dish Top
Piston Type: Cast
Length: 58.60mm
Comp Height: 29.40mm - 3.60mm
Pin Size: 18.00mm x 60.00mm
Pin Type: Press Fit
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 1.5mmm
2nd Ring Width: 1.50mm
Oil Ring Width: 4.00mm
Ring Set: 2C5716 or 5716
Size: 0.50mm Oversize

Tick This part will fit the following Vehicles:

Hyundai Excel X1 (1.5 Litre 4 Cyl G4AJ SOHC 8v):
  • GLS HA31J FWD Hatchback 4 Door [03/1987 to 12/1989] 52KW With Auto or Manual Transmission
  • GLS HF31J FWD Sedan 4 Door [03/1987 to 12/1989] 52KW With Auto or Manual Transmission
  • L HA11J FWD Hatchback 4 Door [07/1987 to 12/1989] 52KW With Manual Transmission
  • L HD11J FWD Hatchback 2 Door [07/1987 to 12/1989] 52KW With Manual Transmission
  • L, GL, GLS HA21J FWD Hatchback 4 Door [02/1986 to 12/1989] 52KW With Auto or Manual Transmission

Description

Nason, 0.50mm Oversize
