Hyundai >> Santa Fe >> SM >> 2.4 Litre 4 Cyl G4JS DOHC 16v >> 01/2000 - 09/2003 4 Door >> Nason Piston & pin set

Nason Piston & pin set Fits Hyundai Santa Fe SM [01/2000 to 09/2003] (2.4L G4JS 4 Cyl DOHC MPFI)

Part
Nason logo

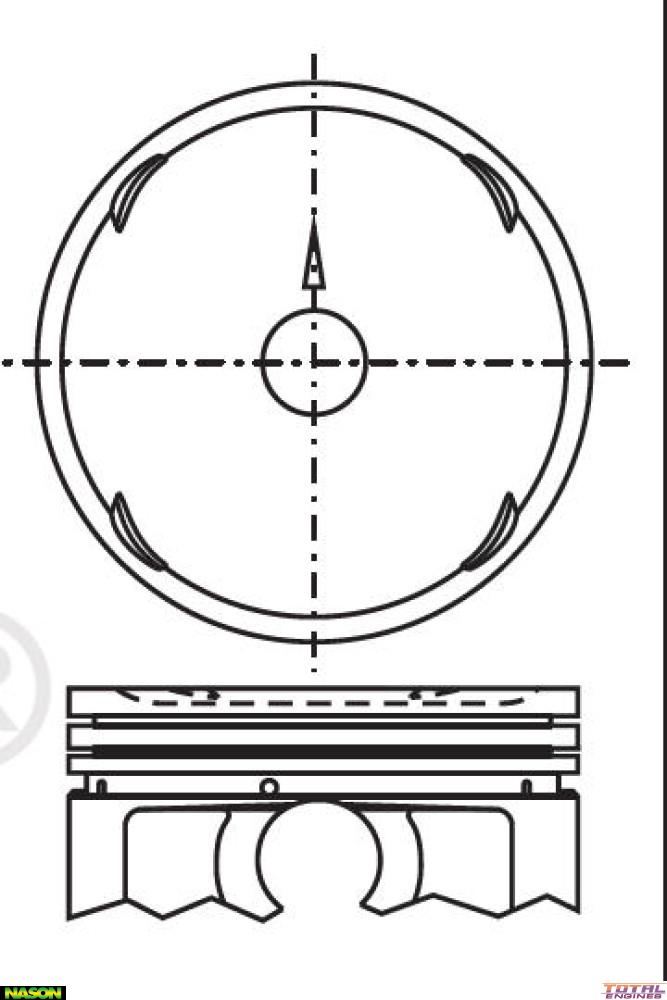

Nason Piston & pin set

$176.73

Specifications
Piston Set: 4 x Piston & Pins
Std Bore Size: 86.50mm
Size: Std
Head Type: Dish Top With 4 Valve Reliefs
Piston Type: Cast
Length: 66.70mm
Comp Height: 34.70mm - 2.00mm
Pin Size: 22.00mm x 62.00mm
Pin Type: Press Fit
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 1.20mm
2nd Ring Width: 1.50mm
Oil Ring Width: 2.80mm
Ring Set: 2C4780

Tick This part will fit the following Vehicles:

Hyundai Santa Fe SM (2.4 Litre 4 Cyl G4JS DOHC 16v):
  • FWD 4 Door [01/2000 to 09/2003] 106KW With Manual Transmission
  • GL SB81B 4WD SUV 4 Door [01/2000 to 09/2003] 106KW With Manual Transmission

Description

Nason, STD Size
