Hyundai >> Sonata >> Y2 >> 2.4 Litre 4 Cyl G4CS SOHC 8v >> GLS AF31S 03/1989 - 03/1990 4 Door Sedan >> Nason Piston & pin set

Nason Piston & pin set Fits Hyundai Sonata Y2 GLS AF31S Sedan [03/1989 to 03/1990] (2.4L G4CS 4 Cyl SOHC EFI)

Part
Nason logo

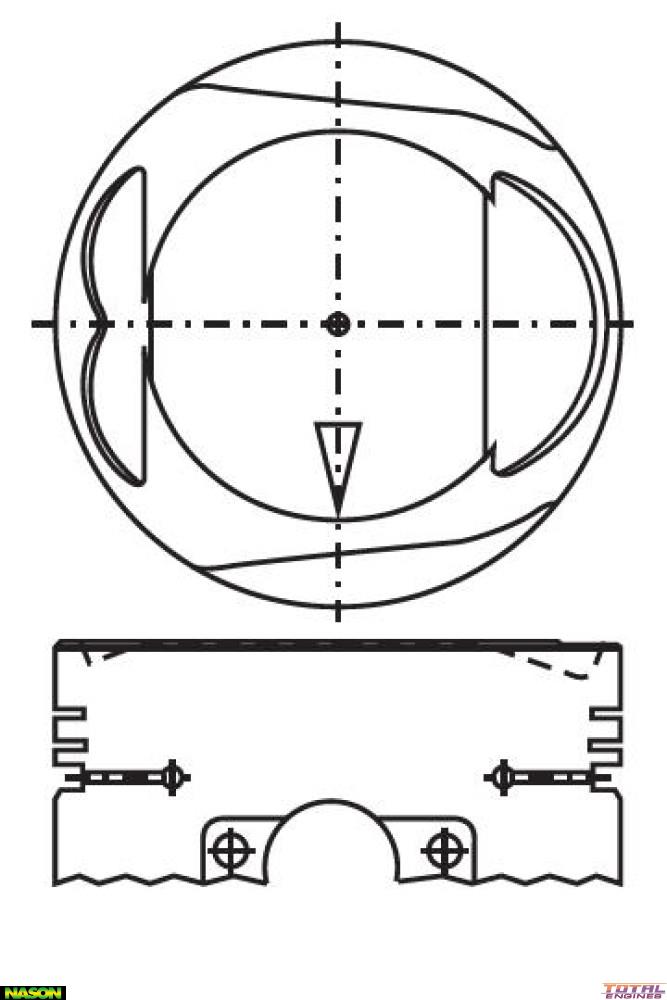

Nason Piston & pin set

Out Of Stock

Specifications
Piston Set: 4 x Piston & Pins
Std Bore Size: 86.50mm
Size: 0.50mm / .020"
Head Type: Dome Top with 3 Valve Reliefs
Piston Type: Cast
Length: 72.40mm
Comp Height: 35.00mm + 0.40mm
Pin Size: 21.00mm x 72.00mm
Pin Type: Press Fit
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 1.50mm
2nd Ring Width: 1.50mm
Oil Ring Width: 4.00mm
Ring Set: 2C4638 or 4638
Size: 0.50mm Oversize

Tick This part will fit the following Vehicles:

Hyundai Sonata Y2 (2.4 Litre 4 Cyl G4CS SOHC 8v):
  • GL AF21S FWD Sedan 4 Door [03/1989 to 12/1991] 82KW With Auto or Manual Transmission
  • GLS AF31S FWD Sedan 4 Door [03/1989 to 03/1990] 82KW With Auto or Manual Transmission

Description

Nason, 0.50mm Oversize
