Hyundai >> Sonata >> Y2 >> 2.4 Litre 4 Cyl G4CS SOHC 8v >> GL AF21S 03/1989 - 12/1991 4 Door Sedan >> Nason Piston & pin set

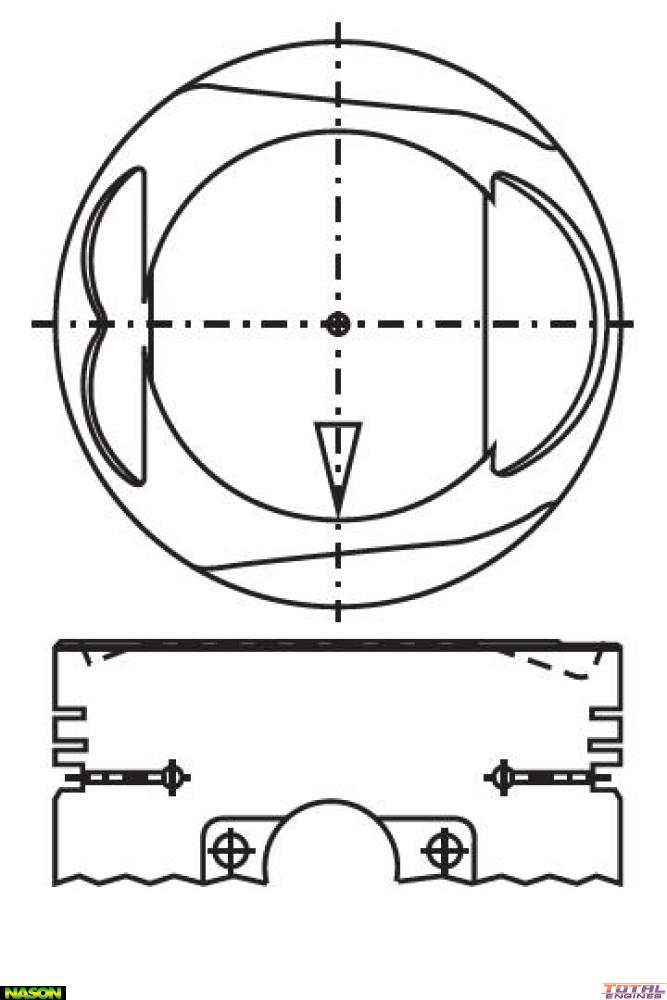

Nason Piston & pin set Fits Hyundai Sonata Y2 GL AF21S Sedan [03/1989 to 12/1991] (2.4L G4CS 4 Cyl SOHC EFI)

Part
Nason logo

Nason Piston & pin set

Out Of Stock

Specifications
Size: 1.00mm Oversize
Ring Set: 2C4638 or 4638
Oil Ring Width: 4.00mm
2nd Ring Width: 1.50mm
Top Ring Width: 1.50mm
Piston to Bore: See Label on Box
Skirt Coating: No
Pin Type: Press Fit
Pin Size: 21.00mm x 72.00mm
Comp Height: 35.00mm + 0.40mm
Length: 72.40mm
Piston Type: Cast
Head Type: Dome Top with 3 Valve Reliefs
Size: 1.00mm / .040"
Std Bore Size: 86.50mm
Piston Set: 4 x Piston & Pins

Tick This part will fit the following Vehicles:

Hyundai Sonata Y2 (2.4 Litre 4 Cyl G4CS SOHC 8v):
  • GL AF21S FWD Sedan 4 Door [03/1989 to 12/1991] 82KW With Auto or Manual Transmission
  • GLS AF31S FWD Sedan 4 Door [03/1989 to 03/1990] 82KW With Auto or Manual Transmission

Description

Nason, 1.00mm Oversize
