Hyundai >> Terracan >> HP >> 2.9 Litre 4 Cyl J3 (CRDi) DOHC 16v >> CRDi NM81X 01/2005 - 01/2007 4 Door SUV >> Nason Piston & pin set

Nason Piston & pin set Fits Hyundai Terracan HP CRDi NM81X SUV [01/2005 to 01/2007] (2.9L J3 (CRDi) 4 Cyl DOHC Turbo CRD)

Part
Nason logo

Nason Piston & pin set

Fitment Information:

Oversize - Pistons Only- Does not Include Rings - Comp Height 52.20mm

Out Of Stock

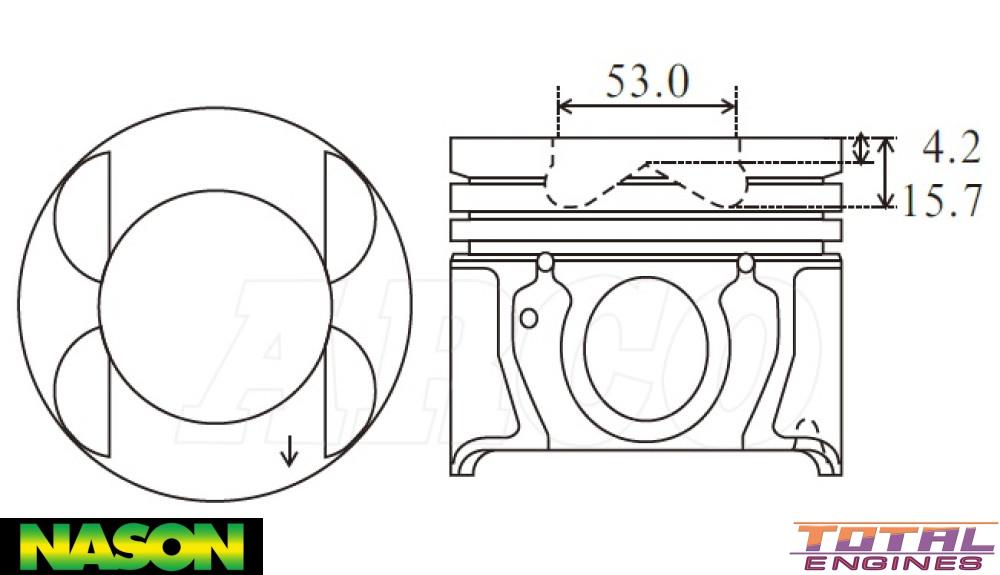

Specifications
Piston Set: 4 x Pistons & Pins
Std Bore Size: 97.10mm
Size: 0.50mm / .020"
Head Type: Flat Top With Combustion Bowl & 4 Valve Reliefs
Piston Type: Cast
Length: 84.20mm
Comp Height: 52.20mm, -4.20mm, -15.70mm
Combustion Bowl OD: 53.00mm
Pin Size: 32.00mm x 81.00mm
Pin Type: Full Floating
Skirt Coating: Yes
Piston to Bore: See Label on Box
Top Ring Width: 2.50mm Half Keystone
2nd Ring Width: 2.00mm
Oil Ring Width: 3.00mm
Ring Set: 42042-0.50
Size: Complete Height 52.20mm

Tick This part will fit the following Vehicles:

Hyundai Terracan HP (2.9 Litre 4 Cyl J3 (CRDi) DOHC 16v):
  • CRDi NM81X 4WD SUV 4 Door [01/2005 to 01/2007] 120KW With Auto or Manual Transmission

Description

Suits Common Rail

Alfin, Oil Gallery Cooling, Pin Bush Insert
