Nason Piston & Pin Set STD Size - Elevate Your Engine Performance!

Upgrade your vehicle’s engine with the Nason Piston & Pin Set, designed specifically for a fit that maximizes efficiency and power. This premium set includes four pistons and pins, perfectly suited for Hyundai iMax TQ 2.5L WH81J models manufactured from November 2007 to July 2012.

Product Features:

• Compatibility: Engineered for manual and automatic Hyundai iMax TQ 2.5L WH81J models (11/2007 to 07/2012).

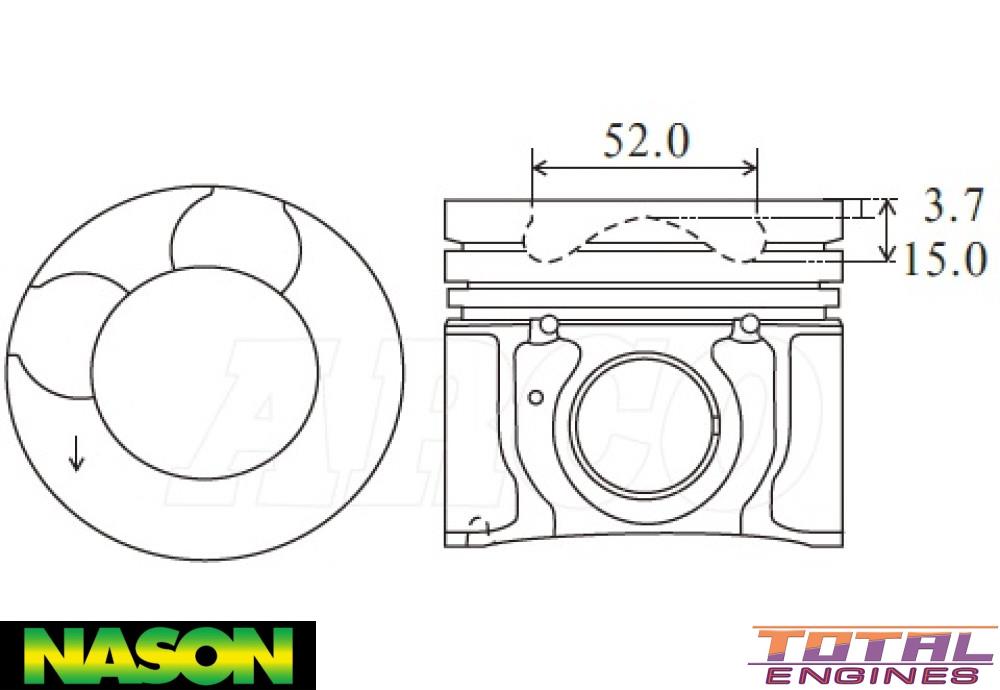

• Advanced Design: Features a combustion bowl with a 52.00mm outer diameter, optimized for superior performance and efficient fuel combustion.
• Durable Construction: Crafted from high-quality cast material, these pistons are built to withstand the rigors of high-performance driving.
• Precision Fit: Each piston measures a standard bore size of 91.00mm and includes precision dimensions such as a length of 83.70mm and a compression height of 54.20mm.
• Enhanced Cooling: Equipped with oil gallery cooling and an Alfin insert for exceptional thermal regulation and longevity.
• Advanced Pin Features: The full floating pin design (33.00mm x 74.00mm) ensures smooth operation and minimizes friction.
• Skirt Coating: Enhanced skirt coating for better lubrication and reduced wear.
• Ring Specifications: The set includes perfectly sized top rings (2.50mm half keystone), 2nd rings (2.00mm), and oil rings (3.00mm) ensuring a complete and effective seal.

Caution! This piston and pin set is NOT compatible with Hyundai iMax TQ 2.5L WH81K models (both automatic and manual) produced after August 2012.

Specifications at a Glance:

• Piston Set: 4 x Pistons & Pins
• Piston Type: Cast
• Combustion Bowl Type: 2 Valve Reliefs
• Piston to Bore: Refer to label on box
• Ring Set: 42037-STD

Revolutionize your vehicle's performance with the Nason Piston & Pin Set STD Size. Whether you're looking to restore or enhance your engine's capabilities, get your set today and experience the difference in power, efficiency, and reliability!
