Hyundai >> iLoad >> TQ >> 2.4 Litre 4 Cyl G4KG DOHC 16v >> WBX7R 01/2009 - Onwards 4 Door Van >> Nason Piston & pin set

Nason Piston & pin set Fits Hyundai iLoad TQ WBX7R Van [01/2009 Onwards] (2.4L G4KG 4 Cyl DOHC MPFI)

Part
Nason logo

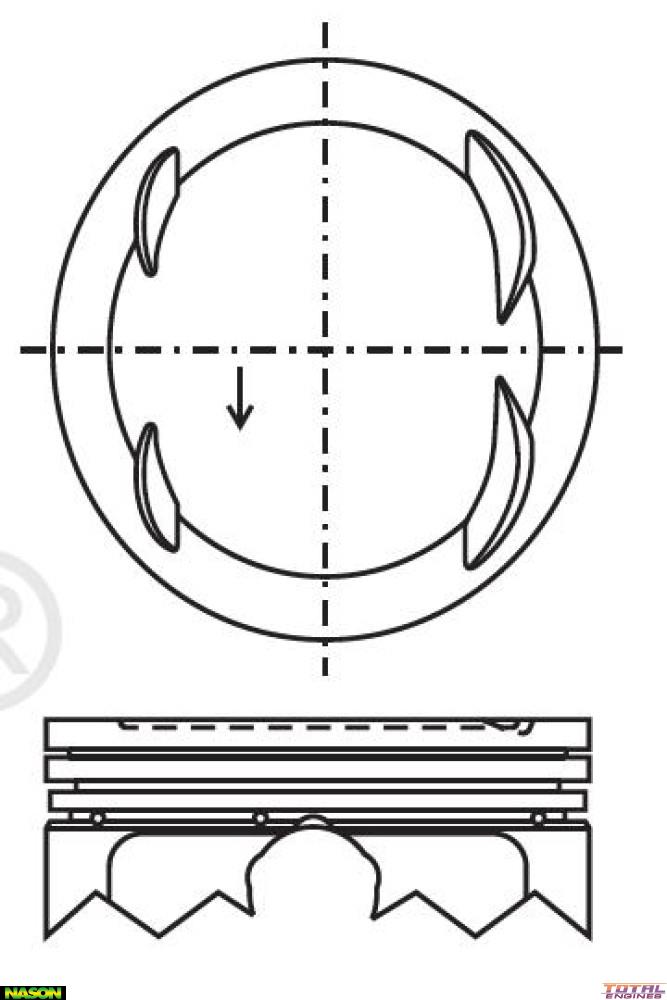

Nason Piston & pin set

$276.70

Specifications
Piston Set: 4 x Piston & Pins
Std Bore Size: 88.00mm
Size: 0.50mm / .020"
Head Type: Dish Top with 4 Valve Reliefs
Piston Type: Cast
Length: 51.50mm
Comp Height: 27.50mm + 1.70mm
Pin Size: 21.00mm x 58.00mm
Pin Type: Press Fit
Skirt Coating: Yes
Piston to Bore: See Label on Box
Top Ring Width: 1.20mm
2nd Ring Width: 1.20mm
Oil Ring Width: 2.00mm
Ring Set: 2C5297
Size: 0.50mm Oversize

Tick This part will fit the following Vehicles:

Hyundai iLoad TQ (2.4 Litre 4 Cyl G4KG DOHC 16v):
  • WBH7R RWD Van 4 Door [02/2008 to 12/2009] 128KW With Auto or Manual Transmission
  • WBX7R RWD Van 4 Door [01/2009 Onwards] 128KW With Auto or Manual Transmission
Hyundai iMax TQ (2.4 Litre 4 Cyl G4KG DOHC 16v):
  • WH81R RWD Van 4 Door [02/2008 Onwards] 129KW With Auto Transmission

Description

Nason, 0.50mm Oversize
