Hyundai >> iMax >> TQ >> 2.5 Litre 4 Cyl D4CB DOHC 16v >> WH81J 11/2007 - 07/2012 4 Door Van >> Nason Piston & pin set

Nason Piston & pin set Fits Hyundai iMax TQ WH81J Van [11/2007 to 07/2012] (2.5L D4CB 4 Cyl DOHC I/C Turbo CRD)

Part
Nason logo

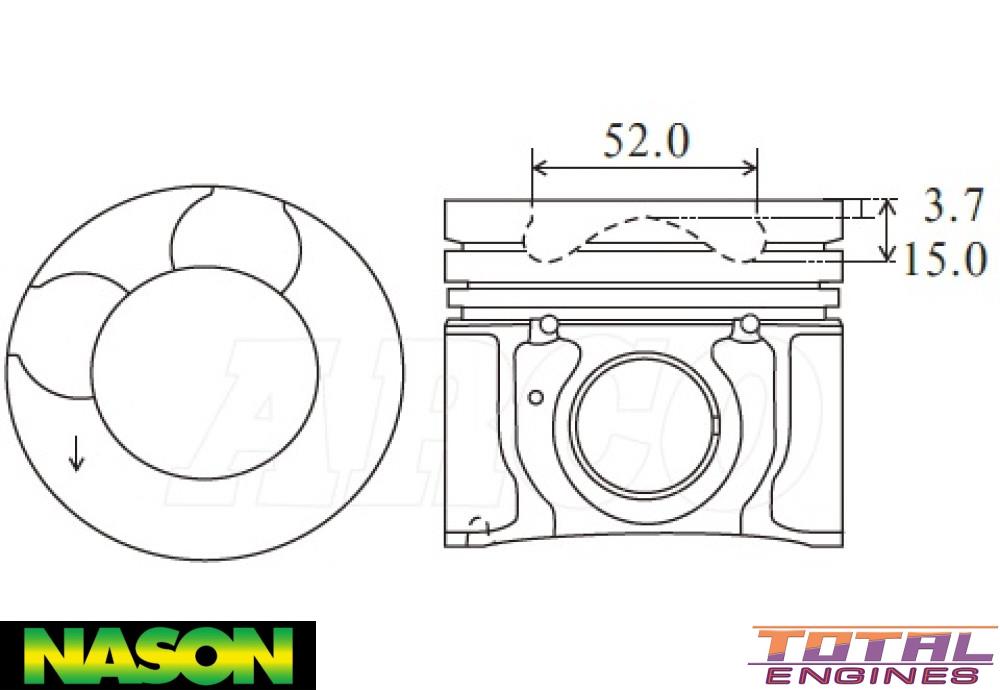

Nason Piston & pin set

Fitment Information:

--> 2012, Pistons only (52mm Combustion Bowl) - Does not Include Rings

$981.34

Specifications
Piston Set: 4 x Pistons & Pins
Std Bore Size: 91.00mm
Size: Std
Head Type: Combustion Bowl With 2 Valve Reliefs
Piston Type: Cast
Length: 83.70mm
Comp Height: 54.20mm, -3.70mm, 15.00mm
Combustion Bowl OD: 52.00mm
Pin Size: 33.00mm x 74.00mm
Pin Type: Full Floating
Skirt Coating: Yes
Piston to Bore: See Label on Box
Top Ring Width: 2.50mm Half Keystone
2nd Ring Width: 2.00mm
Oil Ring Width: 3.00mm
Ring Set: 42037-STD
Size: Pistons only (52mm Combustion Bowl)

Tick This part will fit the following Vehicles:

Hyundai iLoad TQ (2.5 Litre 4 Cyl D4CB DOHC 16v):
  • WBH7J RWD Van 4 Door [02/2008 to 12/2009] 125KW With Auto or Manual Transmission
  • WBX7J RWD Van 4 Door [01/2009 to 08/2012] 125KW With Auto or Manual Transmission
Hyundai iMax TQ (2.5 Litre 4 Cyl D4CB DOHC 16v):
  • WH81J RWD Van 4 Door [11/2007 to 07/2012] 125KW With Auto or Manual Transmission

Description

Suits Up To 2012 with 52.00mm Combustion Bowl

Alfin Insert, Oil Gallery Cooling, Pin Bush Inserted
