Hyundai >> iMax >> TQ >> 2.5 Litre 4 Cyl D4CB DOHC 16v >> WH81K 08/2012 - 09/2021 4 Door Van >> Nason Piston & Pin Set

Nason Piston & Pin Set Fits Hyundai iMax TQ WH81K Van [08/2012 to 09/2021] (2.5L D4CB 4 Cyl DOHC I/C Turbo CRD)

Part
Nason logo

Nason Piston & Pin Set

Fitment Information:

2012 -->, Oversize Pistons only (52.50mm Combustion Bowl) - Does not Include Rings

$646.72

Specifications
Piston Set: 4 x Pistons & Pins
Std Bore Size: 91.00mm
Size: 0.50mm

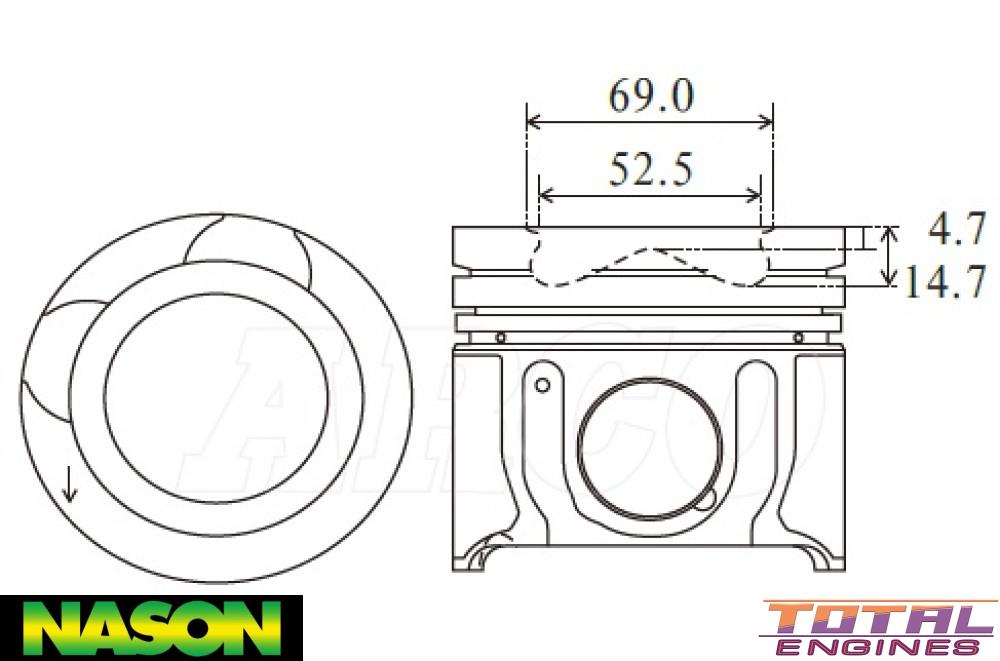

Head Type: Combustion Bowl With 2 Valve Reliefs
Piston Type: Cast
Length: 83.70mm
Comp Height: 54.20mm, -1.70mm, -14.70mm
Combustion Bowl OD: 52.50mm
Pin Size: 33.00mm x 74.00mm
Pin Type: Full Floating
Skirt Coating: Yes
Piston to Bore: See Label on Box
Top Ring Width: 2.50mm Half Keystone
2nd Ring Width: 2.00mm
Oil Ring Width: 3.00mm
Ring Set: 42037-0.50
Size: Oversize Pistons only (52.50mm Combustion Bowl)

Tick This part will fit the following Vehicles:

Hyundai iLoad TQ (2.5 Litre 4 Cyl D4CB DOHC 16v):
  • WBX7J RWD Van 4 Door [01/2009 to 08/2012] 125KW With Auto or Manual Transmission
  • WBX7K RWD Van 4 Door [08/2012 to 09/2021] 100KW With Manual Transmission
  • WBX7K RWD Van 4 Door [08/2012 to 09/2021] 125KW With Auto Transmission
Hyundai iMax TQ (2.5 Litre 4 Cyl D4CB DOHC 16v):
  • WH81J RWD Van 4 Door [11/2007 to 07/2012] 125KW With Auto or Manual Transmission
  • WH81K RWD Van 4 Door [08/2012 to 04/2018] 100KW With Manual Transmission
  • WH81K RWD Van 4 Door [08/2012 to 09/2021] 125KW With Auto Transmission

Description

Nason Piston & Pin Set 0.50 Oversize – Unleash Your Engine’s Potential!

Revitalize the performance of your Hyundai engine with the Nason Piston & Pin Set 0.50 Oversize. Expertly engineered for precision and reliability, this premium piston set is designed to bring your vehicle back to life, enhancing efficiency and power where you need it most.

Key Features:

  • Compatibility: Specifically crafted for Hyundai iLoad TQ 2.5L (WBX7J and WBX7K models) and Hyundai iMax TQ 2.5L, ensuring a perfect fit and optimal performance.
  • Superior Design: Each piston boasts a combustion bowl measuring 52.50mm, featuring two valve reliefs for enhanced airflow and combustion efficiency.
  • Durability: Constructed with high-quality cast material, these pistons offer robust durability, while the Alfin insert with oil gallery cooling promotes optimal thermal regulation.
  • Complete Set: The package includes four pistons and pins, making it the perfect choice for a full engine overhaul or a targeted upgrade.

Specifications:

  • Piston Set Includes: 4 x Pistons & Pins
  • Standard Bore Size: 91.00mm
  • Size: 0.50mm Oversize
  • Piston Length: 83.70mm
  • Compression Height: 54.20mm, with -1.70mm and -14.70mm options
  • Combustion Bowl OD: 52.50mm
  • Pin Size: 33.00mm x 74.00mm (Full Floating)
  • Skirt Coating: Yes, for reduced friction and enhanced performance
  • Ring Set: Includes Top Ring Width of 2.50mm (Half Keystone), 2nd Ring Width of 2.00mm, and Oil Ring Width of 3.00mm

Important Note: This product is NOT compatible with the Hyundai iLoad TQ 2.5L WBH7J model.

Upgrade your engine today with the Nason Piston & Pin Set 0.50 Oversize and experience an impressive boost in performance, reliability, and efficiency. Engines deserve the best – give yours the Nason advantage!
