Isuzu >> D-MAX >> TFR >> 3.0 Litre 4 Cyl 4JJ1-TC DOHC 16v >> SX TFR85 10/2008 - 05/2012 2 Door Ute >> Nason Piston & pin set

Nason Piston & pin set Fits Isuzu D-MAX TFR SX TFR85 Ute [10/2008 to 05/2012] (3.0L 4JJ1-TC 4 Cyl DOHC Turbo CRD)

Part
Nason logo

Nason Piston & pin set

Fitment Information:

Pistons Only- Does not Include Rings

$701.42

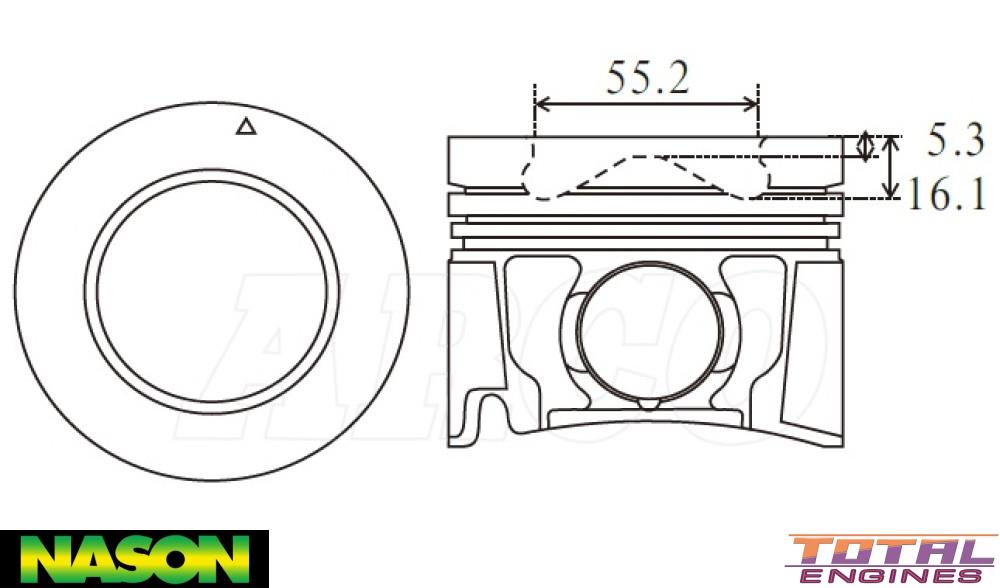

Specifications
Piston Set: 4 x Pistons & Pins
Std Bore Size: 95.40mm
Size: STD
Head Type: Flat Top With Combustion Bowl
Piston Type: Cast
Length: 78.40mm
Comp Height: 49.80mm, -5.30mm, -16.10mm
Combustion Bowl OD: 55.20mm
Pin Size: 34.00mm x 78.00mm
Pin Type: Full Floating
Skirt Coating: Yes
Piston to Bore: See Label on Box
Top Ring Width: 2.00mm Half Keystone
2nd Ring Width: 1.50mm
Oil Ring Width: 3.00mm
Ring Set: 32634-STD

Tick This part will fit the following Vehicles:

Isuzu D-MAX TFR (3.0 Litre 4 Cyl 4JJ1-TC DOHC 16v):
  • SX TFR85 RWD Ute 2 Door [10/2008 to 05/2012] 120KW With Auto or Manual Transmission
  • TFR85 RWD Ute 4 Door [10/2008 to 05/2012] 120KW With Auto or Manual Transmission
Isuzu D-MAX TFS (3.0 Litre 4 Cyl 4JJ1-TC DOHC 16v):
  • SX Space CAB TFS85 4WD Ute 4 Door [07/2009 to 05/2012] 120KW With Auto or Manual Transmission
  • TFS85 4WD Ute 2 Door [10/2008 to 05/2012] 120KW With Auto or Manual Transmission
  • TFS85 4WD Ute 4 Door [10/2008 to 05/2012] 120KW With Auto or Manual Transmission

Description

Suits Up To 05/2012 - Rodeo. Colorado & D-Max

Alfin, Oil Gallery Cooling

Offset Position Oil Drain
