Isuzu >> D-MAX >> TFR >> 3.0 Litre 4 Cyl 4JJ1-TCX DOHC 16v >> SX Space CAB TFR85 11/2015 - 06/2020 4 Door Ute >> Nason Piston & pin set

Nason Piston & pin set Fits Isuzu D-MAX TFR SX Space CAB TFR85 Ute [09/2016 to 06/2020] (3.0L 4JJ1-TCX 4 Cyl DOHC Turbo CRD)

Part
Nason logo

Nason Piston & pin set

Fitment Information:

09/2016 -->, Pistons Only- Does not Include Rings

Out Of Stock

Specifications
Piston Set: 4 x Pistons & Pins
Std Bore Size: 95.40mm
Size: STD

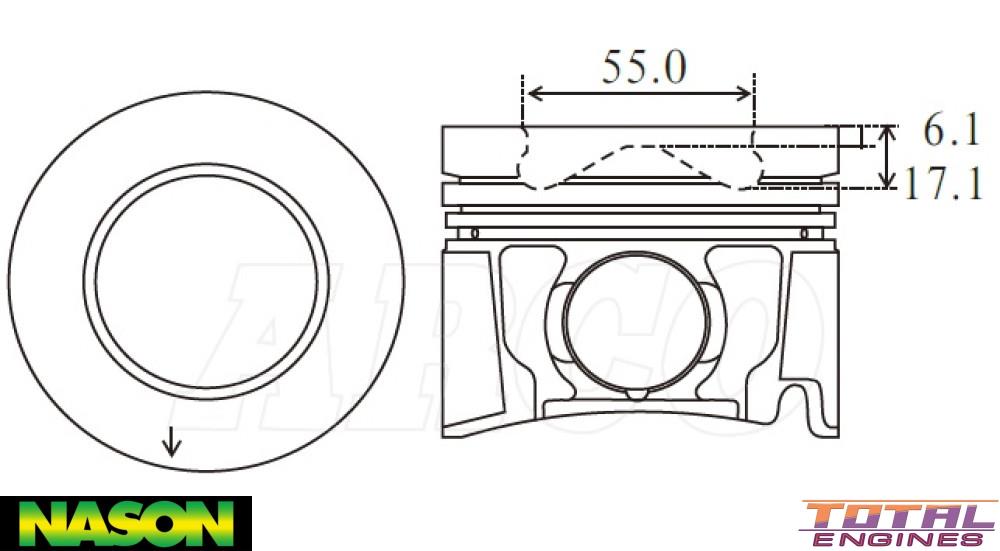

Head Type: Flat Top With Combustion Bowl
Piston Type: Cast
Length: 78.50mm
Comp Height: 49.80mm, 6.10mm, -17.10mm
Combustion Bowl OD: 55.00mm
Pin Size: 34.00mm x 78.00mm
Pin Type: Full Floating
Skirt Coating: Yes
Piston to Bore: See Label on Box
Top Ring Width: 2.00mm Half Keystone
2nd Ring Width: 1.50mm
Oil Ring Width: 3.00mm
Ring Set: 32634-STD

Alert WARNING! This part will NOT FIT the following Vehicles:

Isuzu D-MAX TFR (3.0 Litre 4 Cyl 4JJ1-TCX DOHC 16v):
  • SX Space CAB TFR85 RWD Ute 4 Door [11/2015 to 08/2016] 130KW With Auto or Manual Transmission
  • TFR85 RWD Ute 4 Door [06/2012 to 08/2016] 130KW With Auto or Manual Transmission
  • TFR85 RWD Ute 2 Door [06/2012 to 08/2016] 130KW With Auto or Manual Transmission
  • TFS85 4WD Ute 2 Door [06/2012 to 08/2016] 130KW With Auto or Manual Transmission
  • TFS85 4WD Ute 4 Door [06/2012 to 08/2016] 130KW With Auto or Manual Transmission
Isuzu D-MAX TFS (3.0 Litre 4 Cyl 4JJ1-TCX DOHC 16v):
  • Space CAB TFS85 4WD Ute 4 Door [06/2012 to 08/2016] 130KW With Auto or Manual Transmission

Tick This part will fit the following Vehicles:

Isuzu D-MAX TFR (3.0 Litre 4 Cyl 4JJ1-TCX DOHC 16v):
  • SX Space CAB TFR85 RWD Ute 4 Door [09/2016 to 06/2020] 130KW With Auto or Manual Transmission
  • TFR85 RWD Ute 4 Door [09/2016 to 06/2020] 130KW With Auto or Manual Transmission
  • TFR85 RWD Ute 2 Door [09/2016 to 06/2020] 130KW With Auto or Manual Transmission
  • TFS85 4WD Ute 2 Door [09/2016 to 06/2020] 130KW With Auto or Manual Transmission
  • TFS85 4WD Ute 4 Door [09/2016 to 06/2020] 130KW With Auto or Manual Transmission
Isuzu D-MAX TFS (3.0 Litre 4 Cyl 4JJ1-TCX DOHC 16v):
  • Space CAB TFS85 4WD Ute 4 Door [09/2016 to 06/2020] 130KW With Auto or Manual Transmission

Description

Suits Up From 9/2016 On D-Max & MU-X

Alfin, Oil Gallery Cooling

Centre Position Oil Drain
