Isuzu >> D-MAX >> TFS >> 3.0 Litre 4 Cyl 4JJ1-TCX DOHC 16v >> Space Cab TFS85 06/2012 - 06/2020 4 Door Ute/Extra Cab >> Nason Piston & Pin Set

Nason Piston & Pin Set Fits Isuzu D-MAX TFS Space Cab TFS85 Ute/Extra Cab [09/2016 to 06/2020] (3.0L 4JJ1-TCX 4 Cyl DOHC I/C Turbo CRD)

Part
Nason logo

Nason Piston & Pin Set

Fitment Information:

09/2016 -->, Pistons Only- Does not Include Rings

Out Of Stock

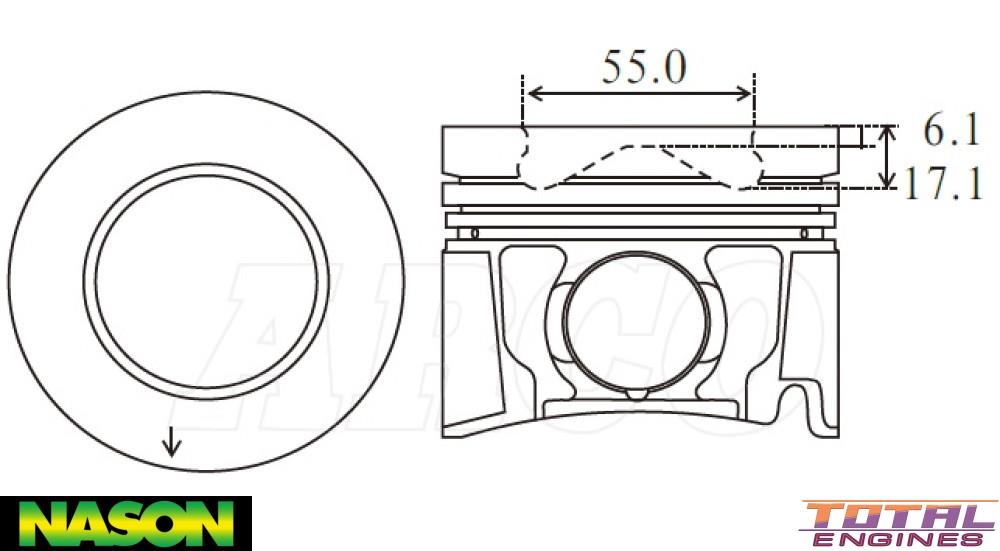

Specifications
Piston Set: 4 x Pistons & Pins
Std Bore Size: 95.40mm
Head Type: Flat Top With Combustion Bowl
Piston Type: Cast
Length: 78.50mm
Comp Height: 49.80mm, 6.10mm, -17.10mm
Combustion Bowl OD: 55.00mm
Pin Size: 34.00mm x 78.00mm
Pin Type: Full Floating
Skirt Coating: Yes
Piston to Bore: See Label on Box
Top Ring Width: 2.00mm Half Keystone
2nd Ring Width: 1.50mm
Oil Ring Width: 3.00mm
Ring Set: 32634-STD

Alert WARNING! This part will NOT FIT the following Vehicles:

Isuzu D-MAX TFS (3.0 Litre 4 Cyl 4JJ1-TCX DOHC 16v):
  • Space Cab TFS85 4WD Ute/Extra Cab 4 Door [06/2012 to 08/2016] 130KW With Auto or Manual Transmission
Isuzu D-MAX TFS (2.2 Litre Inline 4 RZ4F-TC DOHC 16v):
  • TFS41 4WD Ute/Dual Cab 4 Door [07/2025 Onwards] 120KW With Auto Transmission

Tick This part will fit the following Vehicles:

Isuzu D-MAX TFS (3.0 Litre 4 Cyl 4JJ1-TCX DOHC 16v):
  • Space Cab TFS85 4WD Ute/Extra Cab 4 Door [09/2016 to 06/2020] 130KW With Auto or Manual Transmission

Description

Suits Up From 9/2016 On D-Max & MU-X

Alfin, Oil Gallery Cooling

Centre Position Oil Drain
