Isuzu >> NNR65-150 >> NPR >> 3.0 Litre 4 Cyl 4JJ1-TCS DOHC 16v >> NPR85 07/2016 - Onwards 2 Door Truck >> Nason Piston & pin set

Nason Piston & pin set Fits Isuzu NNR65-150 NPR NPR85 Truck [07/2016 Onwards] (3.0L 4JJ1-TCS 4 Cyl DOHC Turbo CRD)

Part
Nason logo

Nason Piston & pin set

Fitment Information:

Pistons Only- Does not Include Rings

Out Of Stock

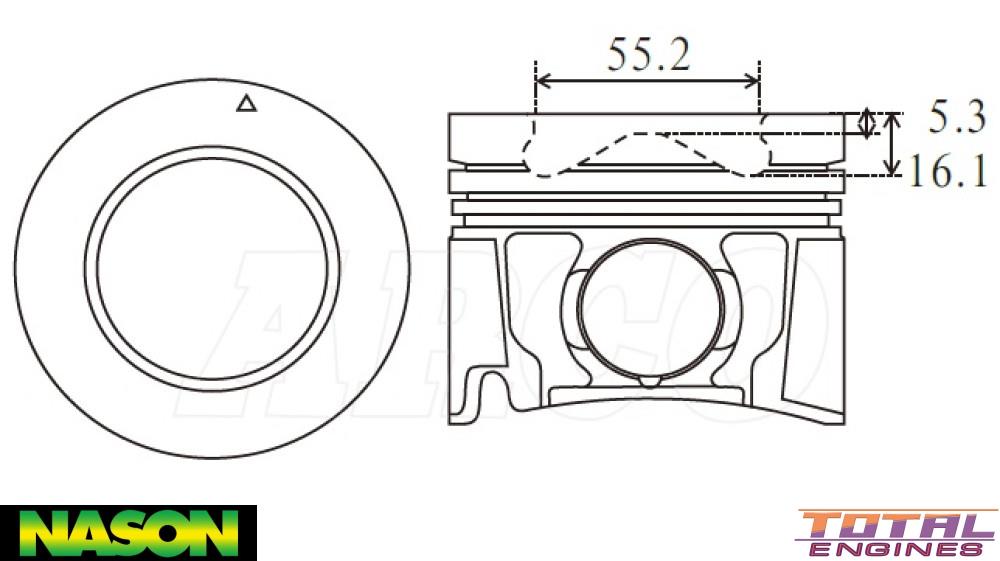

Specifications
Piston Set: 4 x Pistons & Pins
Std Bore Size: 95.40mm
Size: STD
Head Type: Flat Top With Combustion Bowl
Piston Type: Cast
Length: 78.50mm
Comp Height: 49.70mm, 5.30mm, -16.10mm
Combustion Bowl OD: 55.20mm
Pin Size: 34.00mm x 78.00mm
Pin Type: Full Floating
Skirt Coating: Yes
Piston to Bore: See Label on Box
Top Ring Width: 2.00mm Half Keystone
2nd Ring Width: 1.50mm
Oil Ring Width: 3.00mm
Ring Set: 32634-STD

Tick This part will fit the following Vehicles:

Isuzu NNR65-150 NNR (3.0 Litre 4 Cyl 4JJ1-TCS DOHC 16v):
  • NNR85 4X2 Truck 2 Door [07/2016 Onwards] 110KW With Manual or Automated Manual Transmission
Isuzu NNR65-150 NPR (3.0 Litre 4 Cyl 4JJ1-TCS DOHC 16v):
  • NPR85 4X2 Truck 2 Door [07/2016 Onwards] 110KW With Manual or Automated Manual Transmission

Description

Suits N Series Truck Engines

Alfin, Oil Gallery Cooling
