Isuzu >> Rodeo >> TFR >> 2.6 Litre 4 Cyl 4ZE1 SOHC 8v >> TFR17 01/1989 - 12/1994 2 Door Ute >> Nason Piston & pin set

Nason Piston & pin set Fits Isuzu Rodeo TFR TFR17 Ute [01/1989 to 12/1994] (2.6L 4ZE1 4 Cyl SOHC EFI)

Part
Nason logo

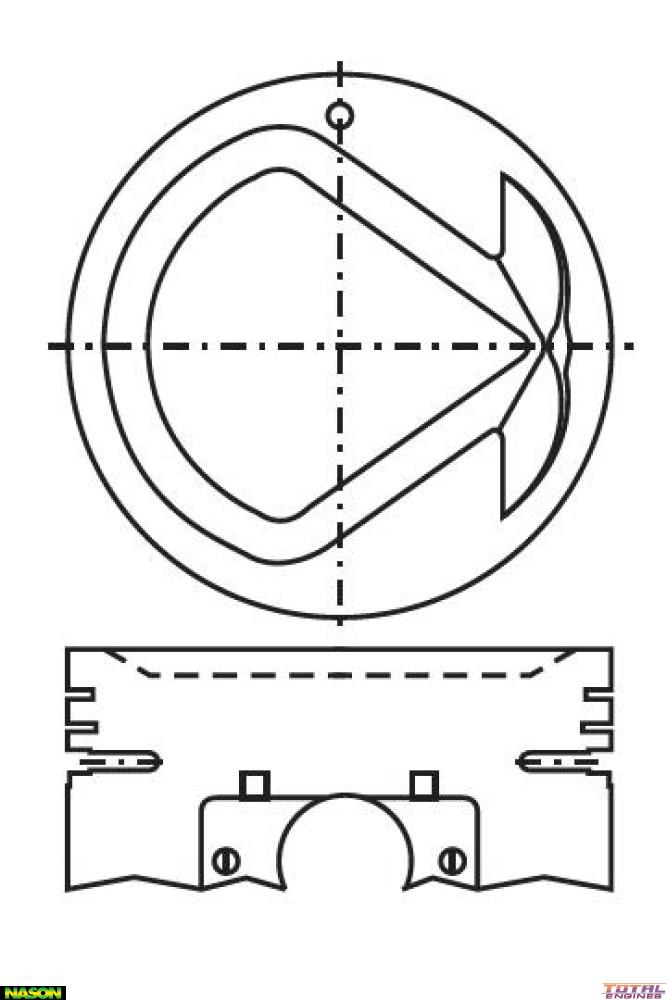

Nason Piston & pin set

Fitment Information:

Nason, STD Size Kidney Shaped Bowl

Out Of Stock

Specifications
Piston Set: 4 x Piston & Pins
Std Bore Size: 92.60mm
Size: Std
Head Type: Dish Top with 2 Valve Reliefs
Piston Type: Cast
Length: 79.00mm
Comp Height: 36.50mm - 4.30mm
Pin Size: 23.00mm x 77.00mm
Pin Type: Press Fit
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 1.50mm
2nd Ring Width: 1.50mm
Oil Ring Width: 4.00mm
Ring Set: 2M4637 or 4637

Alert WARNING! This part will NOT FIT the following Vehicles:

Isuzu MU UCS (2.6 Litre 4 Cyl 4ZE1 SOHC 8v):
  • UCS17DH 4WD Soft Top 2 Door [04/1989 to 09/1992] 89KW With Manual Transmission

Tick This part will fit the following Vehicles:

Isuzu Rodeo TFR (2.6 Litre 4 Cyl 4ZE1 SOHC 8v):
  • TFR17 RWD Ute 2 Door [01/1989 to 12/1994] 88KW With Manual Transmission
Isuzu Rodeo TFS (2.6 Litre 4 Cyl 4ZE1 SOHC 8v):
  • TFS17 4WD Ute 2 Door [07/1988 to 12/1993] With Manual Transmission

Description

Nason, STD Size
