Isuzu >> Trooper >> UBS >> 2.3 Litre 4 Cyl 4ZD1 SOHC 8v >> UBS16 08/1985 - 06/1988 4 Door SUV >> Nason Piston & pin set

Nason Piston & pin set Fits Isuzu Trooper UBS UBS16 SUV [08/1985 to 06/1988] (2.3L 4ZD1 4 Cyl SOHC CARB)

Part
Nason logo

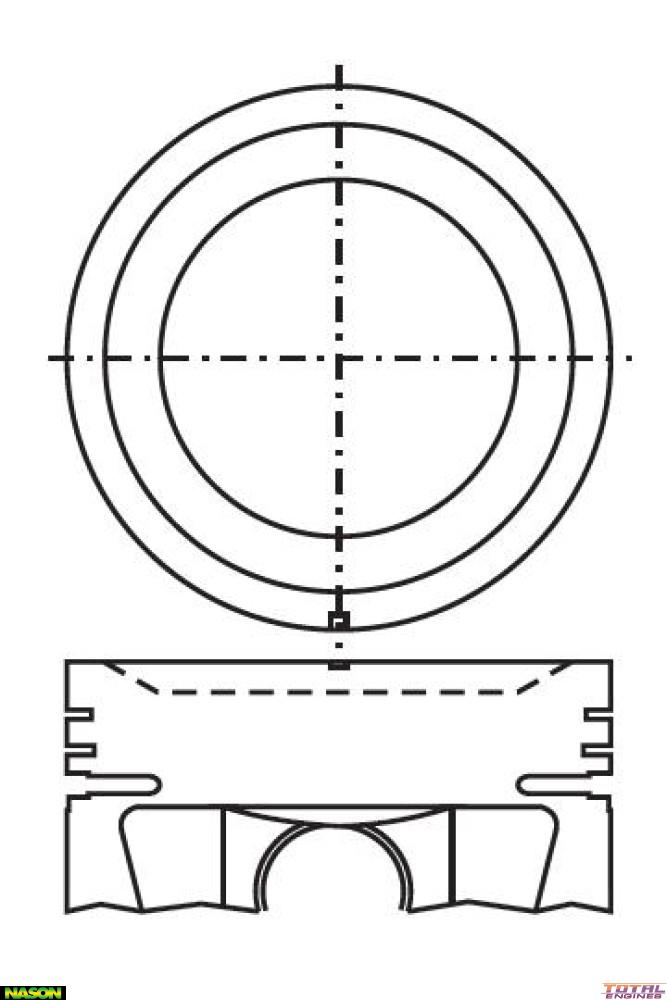

Nason Piston & pin set

$164.09

Specifications
Piston Set: 4 x Piston & Pins
Std Bore Size: 89.30mm
Size: 0.50mm / .020"
Head Type: Dish Top
Piston Type: Cast
Length: 81.00mm
Comp Height: 39.00mm - 5.20mm
Pin Size: 23.00mm x 77.70mm
Pin Type: Press Fit
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 1.50mm
2nd Ring Width: 1.50mm
Oil Ring Width: 4.00mm
Ring Set: 2C4603 or 4603
Size: 0.50mm Oversize

Alert WARNING! This part will NOT FIT the following Vehicles:

Isuzu Rodeo TFR (2.3 Litre 4 Cyl 4ZD1 SOHC 8v):
  • TFR16 RWD Utility 2 Door [01/1988 to 12/1992] 69KW With Manual Transmission

Tick This part will fit the following Vehicles:

Isuzu Trooper UBS (2.3 Litre 4 Cyl 4ZD1 SOHC 8v):
  • UBS16 4WD SUV 4 Door [08/1985 to 06/1988] 81KW With Manual Transmission

Description

Nason, 0.50mm Oversize
