Isuzu >> Trooper >> UBS >> 2.3 Litre 4 Cyl 4ZD1 SOHC 8v >> UBS16 08/1985 - 06/1988 4 Door SUV Mid-Size >> Nason Piston & Pin Set

Nason Piston & Pin Set Fits Isuzu Trooper UBS UBS16 SUV Mid-Size [08/1985 to 06/1988] (2.3L 4ZD1 4 Cyl SOHC CARB)

Part
Nason logo

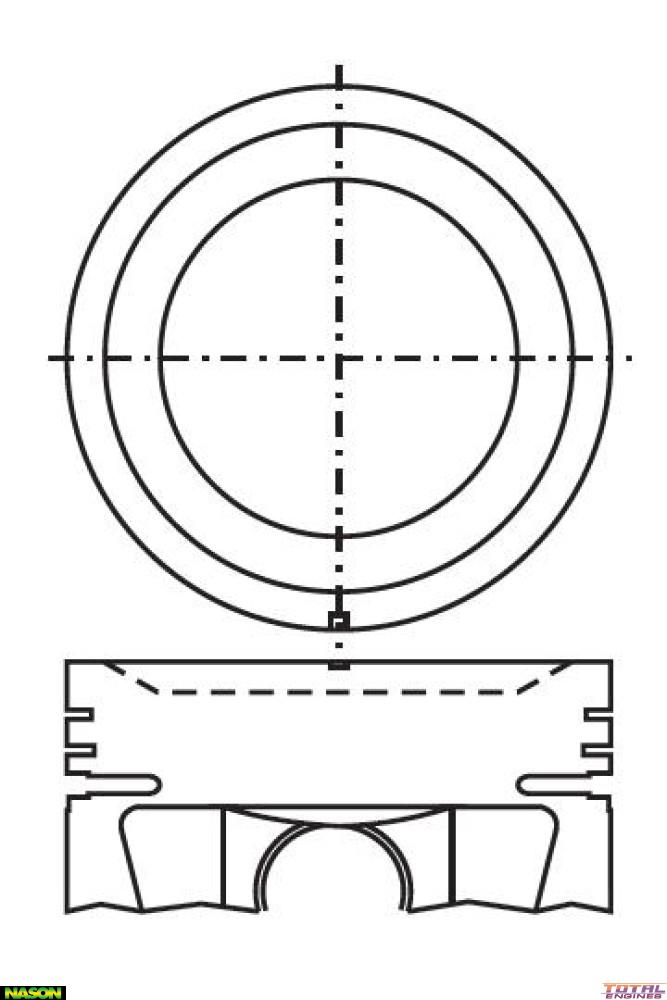

Nason Piston & Pin Set

Out Of Stock

Specifications
Ring Set: 2C4603 or 4603
Oil Ring Width: 4.00mm
2nd Ring Width: 1.50mm
Top Ring Width: 1.50mm
Piston to Bore: See Label on Box
Skirt Coating: No
Pin Type: Press Fit
Pin Size: 23.00mm x 77.70mm
Comp Height: 39.00mm - 5.20mm
Length: 81.00mm
Piston Type: Cast
Head Type: Dish Top
Std Bore Size: 89.30mm
Piston Set: 4 x Piston & Pins

Alert WARNING! This part will NOT FIT the following Vehicles:

Isuzu Rodeo TFR (2.3 Litre 4 Cyl 4ZD1 SOHC 8v):
  • TFR16 RWD Ute/Single Cab 2 Door [01/1988 to 12/1992] 69KW With Manual Transmission

Tick This part will fit the following Vehicles:

Isuzu Trooper UBS (2.3 Litre 4 Cyl 4ZD1 SOHC 8v):
  • UBS16 4WD SUV Mid-Size 4 Door [08/1985 to 06/1988] 81KW With Manual Transmission

Description

Nason, STD Size
