Kia >> Rondo >> UN >> 2.0 Litre 4 Cyl G4KA DOHC 16v >> EX, LX FG521 04/2008 - 11/2009 4 Door Wagon >> Nason Piston & pin set

Nason Piston & pin set Fits Kia Rondo UN EX, LX FG521 Wagon [04/2008 to 11/2009] (2.0L G4KA 4 Cyl DOHC VVT MPFI)

Part
Nason logo

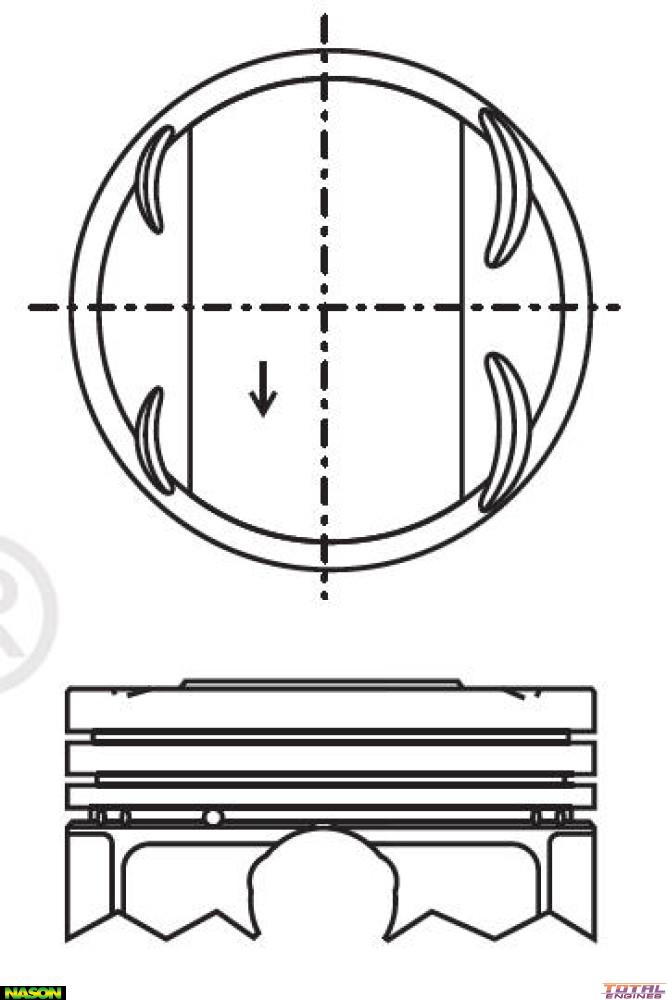

Nason Piston & pin set

$155.18

Specifications
Piston Set: 4 x Piston & Pins
Std Bore Size: 86.00mm
Head Type: Dome Top With 4 Valve Reliefs
Piston Type: Cast
Length: 51.90mm
Comp Height: 27.50mm + 1.40mm
Pin Size: 21.00mm x 58.00mm
Pin Type: Press Fit
Skirt Coating: Yes
Piston to Bore: See Label on Box
Top Ring Width: 1.20mm
2nd Ring Width: 1.20mm
Oil Ring Width: 2.00mm
Ring Set: 2C4835

Tick This part will fit the following Vehicles:

Kia Rondo UN (2.0 Litre 4 Cyl G4KA DOHC 16v):
  • EX, LX FG521 FWD Wagon 4 Door [04/2008 to 11/2009] 106KW With Auto or Manual Transmission
  • EX, LX HH811 FWD Wagon 4 Door [12/2009 to 09/2010] 106KW With Auto or Manual Transmission
  • Si, SLi HG811 FWD Wagon 4 Door [10/2010 to 05/2013] 106KW With Auto or Manual Transmission

Description

Nason, STD Size
