Kia >> Soul >> AM >> 1.6 Litre 4 Cyl D4FB DOHC 16v >> JT813 04/2009 - 01/2014 4 Door Hatchback >> Nason Piston & pin set

Nason Piston & pin set Fits Kia Soul AM JT813 Hatchback [04/2009 to 01/2014] (1.6L D4FB 4 Cyl DOHC Turbo Direct Inj)

Part
Nason logo

Nason Piston & pin set

Fitment Information:

Oversize - Pistons Only- Does not Include Rings

$520.61

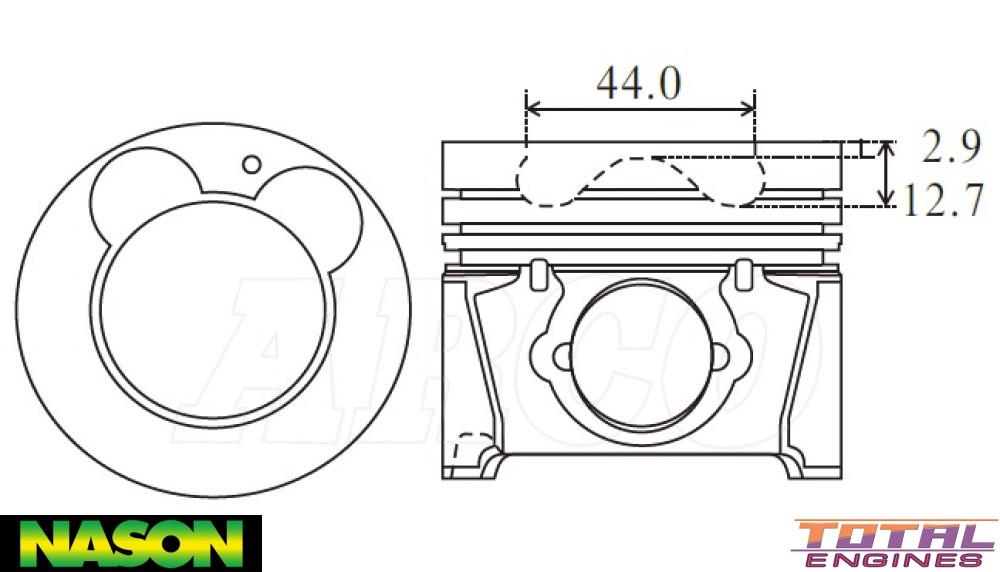

Specifications
Piston Set: 4 x Pistons & Pins
Std Bore Size: 77.20mm
Size: 0.50mm / .020"
Head Type: Flat Top With Combustion Bowl & 2 Valve Reliefs
Piston Type: Cast
Length: 65.70mm
Comp Height: 42.00mm, -2.90mm, -12.70mm
Combustion Bowl OD: 44.00mm
Pin Size: 28.00mm x 62.00mm
Pin Type: Full Floating
Skirt Coating: Yes
Piston to Bore: See Label on Box
Top Ring Width: 1.75mm
2nd Ring Width: 1.75mm
Oil Ring Width: 3.00mm
Ring Set: 43026-0.50

Tick This part will fit the following Vehicles:

Kia Soul AM (1.6 Litre 4 Cyl D4FB DOHC 16v):
  • JT813 FWD Hatchback 4 Door [04/2009 to 01/2014] 94KW With Auto or Manual Transmission

Description

Alfin, Oil Gallery Cooling
