Land Rover >> Defender >> 110 >> 2.2 Litre 4 Cyl DT224 DOHC 16v >> L316 01/2012 - 11/2014 2 Door Wellside >> Nason Piston & Pin Set

Nason Piston & Pin Set Fits Land Rover Defender 110 L316 Wellside [01/2012 to 11/2014] (2.2L DT224 4 Cyl DOHC Turbo Direct Inj)

Part
Nason logo

Nason Piston & Pin Set

Fitment Information:

Pistons Only- Does not Include Rings - 43.40 Comp Height

$556.63

Specifications
Piston Set: 4 x Pistons & Pins
Std Bore Size: 86.00mm
Head Type: Combustion Bowl
Piston Type: Cast
Length: 69.80mm

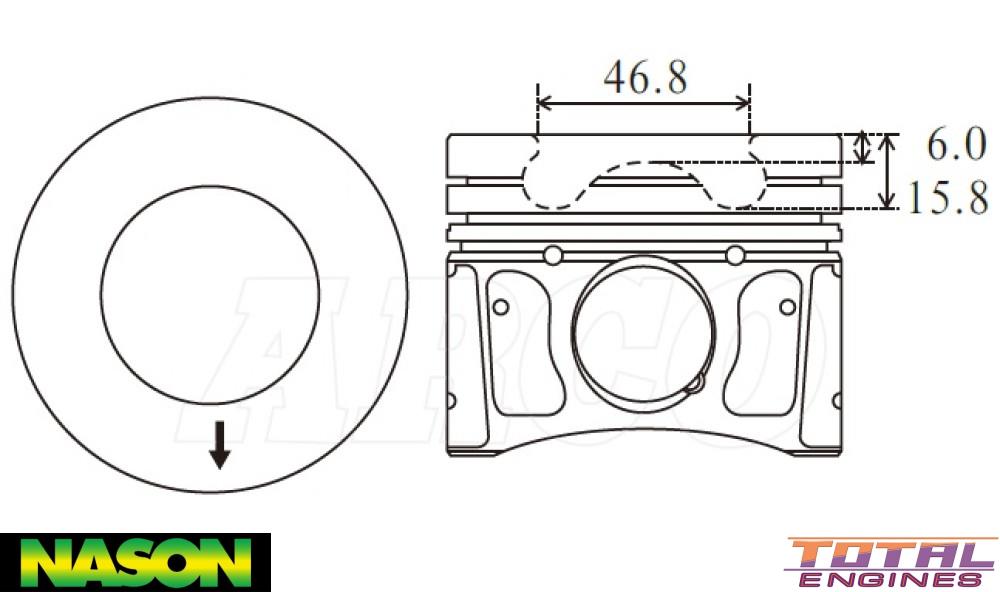

Comp Height: 43.40mm, -6.00mm, -15.80mm
Combustion Bowl OD: 46.80mm
Pin Size: 30.00mm x 66.80mm
Pin Type: Full Floating
Skirt Coating: Yes
Piston to Bore: See Label on Box
Top Ring Width: 2.00mm
2nd Ring Width: 2.00mm
Oil Ring Width: 2.00mm
Ring Set: 2D7451-STD X 4 OR 50068-STD X 1

Alert WARNING! This part will NOT FIT the following Vehicles:

Land Rover Defender 110 (2.2 Litre 4 Cyl DT224 DOHC 16v):
  • L316 4WD Wellside 2 Door [01/2012 to 11/2014] 90KW With Manual Transmission
  • L316 4WD SUV Mid-Size 4 Door [01/2012 to 08/2016] 90KW With Manual Transmission
  • L316 4WD Wellside 4 Door [01/2012 to 11/2014] 90KW With Manual Transmission

Tick This part will fit the following Vehicles:

Land Rover Defender 110 (2.2 Litre 4 Cyl DT224 DOHC 16v):
  • L316 4WD SUV 2 Door [01/2012 to 11/2014] 90KW With Manual Transmission With: With 43.40 Complete Height
  • L316 4WD Wellside 2 Door [01/2012 to 11/2014] 90KW With Manual Transmission With: With 43.40 Complete Height
  • L316 4WD SUV 4 Door [01/2012 to 08/2016] 90KW With Manual Transmission With: With 43.40 Complete Height
  • L316 4WD Wellside 4 Door [01/2012 to 11/2014] 90KW With Manual Transmission With: With 43.40 Complete Height

Description

Nason Piston & Pin Set - STD Size

Upgrade Your Engine with Nason's Premium Piston & Pin Set!

Get your engine running at peak performance with the Nason Piston & Pin Set, specially engineered for reliability and efficiency. This high-quality piston set is designed to fit specific Land Rover Defender models, ensuring optimal compatibility and seamless installation.

Key Features:

  • Brand: Nason
  • Category: Cylinder Block
  • Fits Specific Models:
  • Land Rover Defender 130 2.2L Cab Chassis (43.40 Comp Height)
  • Land Rover Defender 90 2.2L SUV (43.40 Comp Height)

Specifications:

  • Piston Set: Includes 4 pistons and pins
  • Standard Bore Size: 86.00mm
  • Head Type: Combustion Bowl for improved engine efficiency
  • Piston Type: Durable cast construction designed for long-lasting performance
  • Length: 69.80mm ensuring a precise fit
  • Compression Height Options: 43.40mm, -6.00mm, -15.80mm
  • Combustion Bowl Outer Diameter: 46.80mm to enhance combustion efficiency
  • Pin Size: 30.00mm x 66.80mm, full floating type for smoother operation
  • Skirt Coating: Yes, for reduced friction
  • Piston to Bore Specifications: Check label on box for fitting guidance
  • Ring Widths:
  • Top Ring: 2.00mm
  • Second Ring: 2.00mm
  • Oil Ring: 2.00mm
  • Ring Set: 2D7451-STD x 4 OR 50068-STD x 1

Important Fitment Information:

Will Fit the Following Vehicles:

  • Land Rover Defender 130 2.2L Cab Chassis (43.40 Comp Height)
  • Land Rover Defender 90 2.2L SUV (43.40 Comp Height)

WARNING: This product will NOT FIT:

  • Land Rover Defender 130 2.2L Wellside
  • Land Rover Defender 90 2.2L SUV Compact

Whether you're a professional mechanic or a DIY enthusiast, Nason's Piston & Pin Set is the perfect choice to enhance your engine’s performance. Order yours today and experience the unbeatable quality and precision that only Nason can provide. Drive with confidence knowing that your Land Rover Defender is equipped with top-tier components!
