Mazda >> 121 >> DA >> 1.3 Litre 4 Cyl B3 SOHC 8v >> DA3S 03/1987 - 11/1990 2 Door Hatchback >> Nason Piston & pin set

Nason Piston & pin set Fits Mazda 121 DA DA3S Hatchback [03/1987 to 11/1990] (1.3L B3 4 Cyl SOHC CARB)

Part
Nason logo

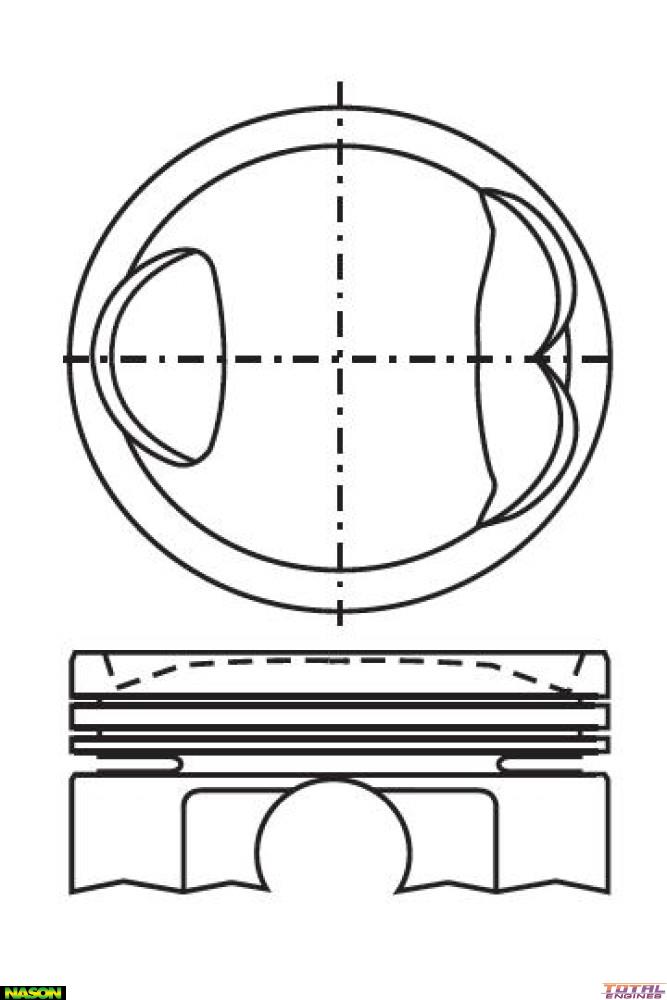

Nason Piston & pin set

Out Of Stock

Specifications
Piston Set: 4 x Piston & Pins
Std Bore Size: 71.00mm
Size: Std
Head Type: Dish Top with 3 Valve Relief
Piston Type: Cast
Length: 60.00mm
Comp Height: 28.80mm - 4.70mm
Pin Size: 20.00mm x 52.00mm
Pin Type: Press Fit
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 1.20mm
2nd Ring Width: 1.50mm
Oil Ring Width: 3.00mm
Ring Set: 2C4451

Tick This part will fit the following Vehicles:

Mazda 121 DA (1.3 Litre 4 Cyl B3 SOHC 8v):
  • DA3S FWD Hatchback 2 Door [03/1987 to 11/1990] 46KW With Manual Transmission

Description

Nason, STD Size
