Mazda >> 121 >> DB >> 1.3 Litre 4 Cyl B3 SOHC 8v >> DB3P 01/1993 - 08/1997 4 Door Sedan >> Nason Piston & pin set

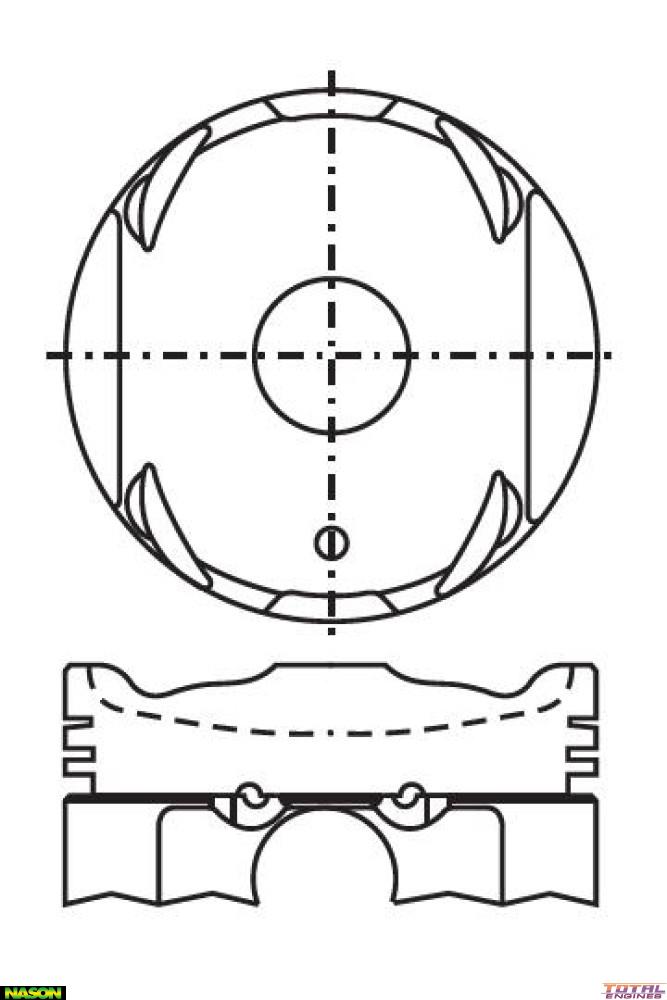

Nason Piston & pin set Fits Mazda 121 DB DB3P Sedan [01/1993 to 08/1997] (1.3L B3 4 Cyl SOHC CARB)

Part
Nason logo

Nason Piston & pin set

Out Of Stock

Specifications
Piston Set: 4 x Piston & Pins
Std Bore Size: 75.00mm
Size: 0.50mm / .020"
Head Type: Dish Top with 4 Valve Reliefs
Piston Type: Cast
Length: 60.00mm
Comp Height: 29.40mm - 9.50mm
Pin Size: 20.00mm x 52.00mm
Pin Type: Press Fit
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 1.20mm
2nd Ring Width: 1.50mm
Oil Ring Width: 3.00mm
Ring Set: 2C4451
Size: 0.50mm Oversize

Tick This part will fit the following Vehicles:

Mazda 121 DB (1.3 Litre 4 Cyl B3 SOHC 8v):
  • DB3P FWD Sedan 4 Door [11/1990 to 08/1997] 54KW With Auto or Manual Transmission
  • DB3P FWD Sedan 4 Door [01/1993 to 08/1997] 54KW With Auto or Manual Transmission
Mazda 121 DW (1.3 Litre 4 Cyl B3M1 SOHC 16v):
  • Metro DW3W FWD Hatchback 4 Door [10/1996 to 12/2002] 53KW With Auto or Manual Transmission

Description

Nason, 0.50mm Oversize
