Mazda >> 121 >> DW >> 1.3 Litre 4 Cyl B3M1 SOHC 16v >> Metro DW3W 10/1996 - 12/2002 4 Door Hatchback >> Nason Piston & Pin Set

Nason Piston & Pin Set Fits Mazda 121 DW Metro DW3W Hatchback [10/1996 to 12/2002] (1.3L B3M1 4 Cyl SOHC EFI)

Part
Nason logo

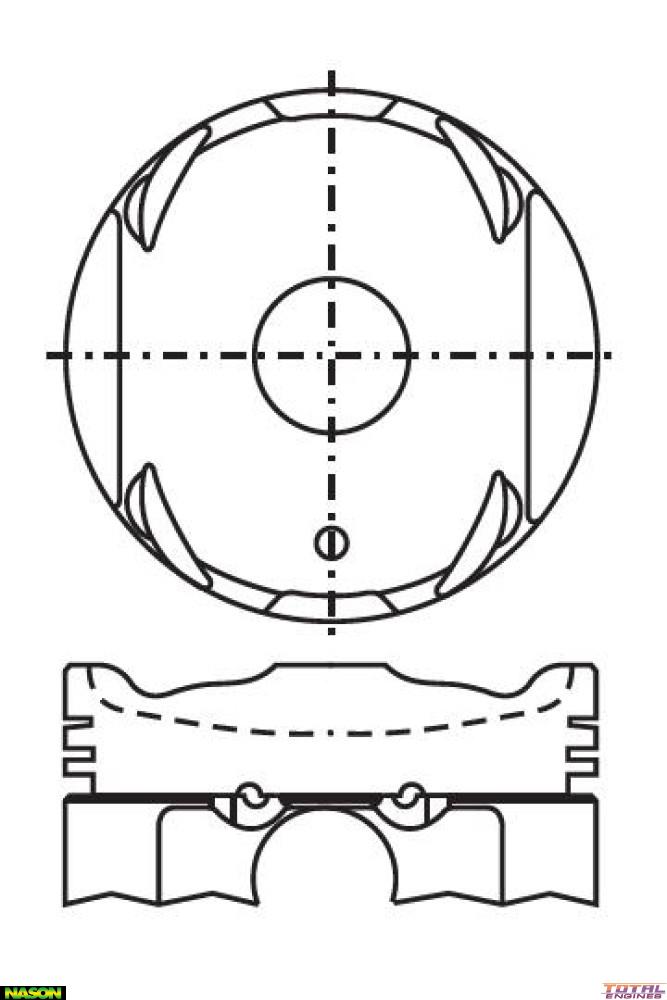

Nason Piston & Pin Set

Out Of Stock

Specifications
Ring Set: 2C4451
Oil Ring Width: 3.00mm
2nd Ring Width: 1.50mm
Top Ring Width: 1.20mm
Piston to Bore: See Label on Box
Skirt Coating: No
Pin Type: Press Fit
Pin Size: 20.00mm x 52.00mm
Comp Height: 29.40mm - 9.50mm
Length: 60.00mm
Piston Type: Cast
Head Type: Dish Top with 4 Valve Reliefs
Std Bore Size: 75.00mm
Piston Set: 4 x Piston & Pins

Tick This part will fit the following Vehicles:

Mazda 121 DW (1.3 Litre 4 Cyl B3M1 SOHC 16v):
  • Metro DW3W FWD Hatchback 4 Door [10/1996 to 12/2002] 53KW With Auto or Manual Transmission

Description

Nason, STD Size
