Mazda >> 1600 >> (No Series) >> 1.6 Litre 4 Cyl NA SOHC 8v >> 01/1977 - 12/1978 4 Door Wagon >> Nason Piston & pin set

Nason Piston & pin set Fits Mazda 1600 Wagon [01/1977 to 12/1978] (1.6L NA 4 Cyl SOHC CARB)

Part
Nason logo

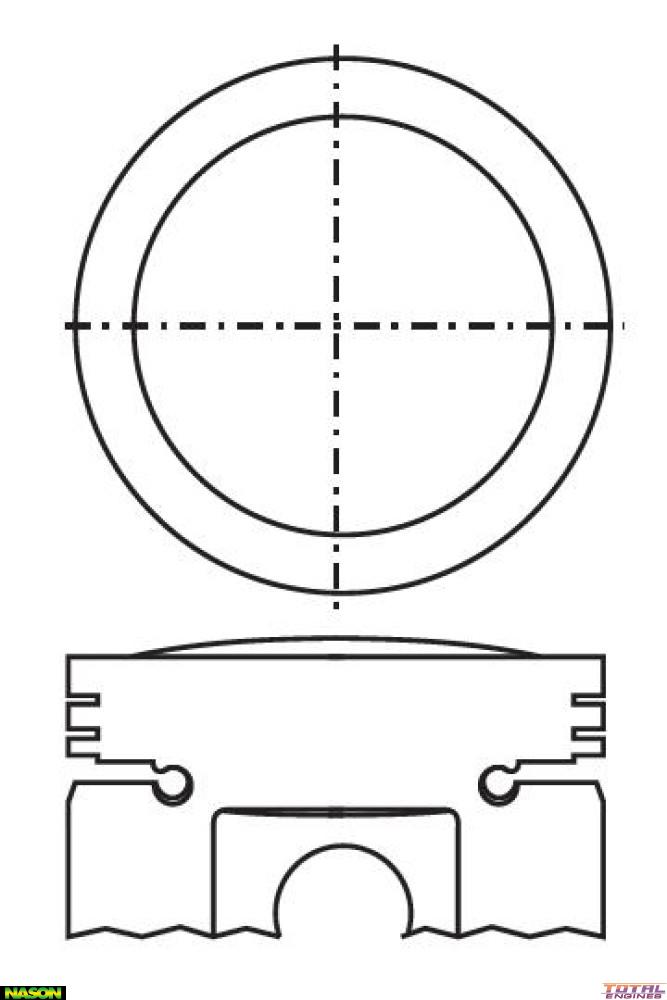

Nason Piston & pin set

Fitment Information:

Nason, 0.50mm Oversize 20mm Gudgeon Pin

$123.09

Specifications
Piston Set: 4 x Piston & Pins
Std Bore Size: 78.00mm
Size: 0.50mm / .020"
Head Type: Dome Top
Piston Type: Cast
Length: 78.20mm
Comp Height: 38.40mm + 2.80mm
Pin Size: 20.00mm x 65.00mm
Pin Type: Press Fit
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 1.20mm
2nd Ring Width: 1.50mm
Oil Ring Width: 4.00mm
Ring Set: 2C64237
Size: 0.50mm Oversize
Size: 20mm Gudgeon Pin

Tick This part will fit the following Vehicles:

Mazda 1600 (1.6 Litre 4 Cyl NA SOHC 8v):
  • RWD Coupe 2 Door [01/1977 to 12/1978] With Auto or Manual Transmission
  • RWD Sedan 4 Door [01/1977 to 12/1978] With Auto or Manual Transmission
  • RWD Wagon 4 Door [01/1977 to 12/1978] With Auto or Manual Transmission

Description

Nason, 0.50mm Oversize
