Mazda >> 323 >> BD >> 1.3 Litre 4 Cyl E3 SOHC 8v >> BD103 10/1980 - 10/1985 2 Door Hatchback >> Nason Piston & pin set

Nason Piston & pin set Fits Mazda 323 BD BD103 Hatchback [10/1980 to 10/1985] (1.3L E3 4 Cyl SOHC CARB)

Part
Nason logo

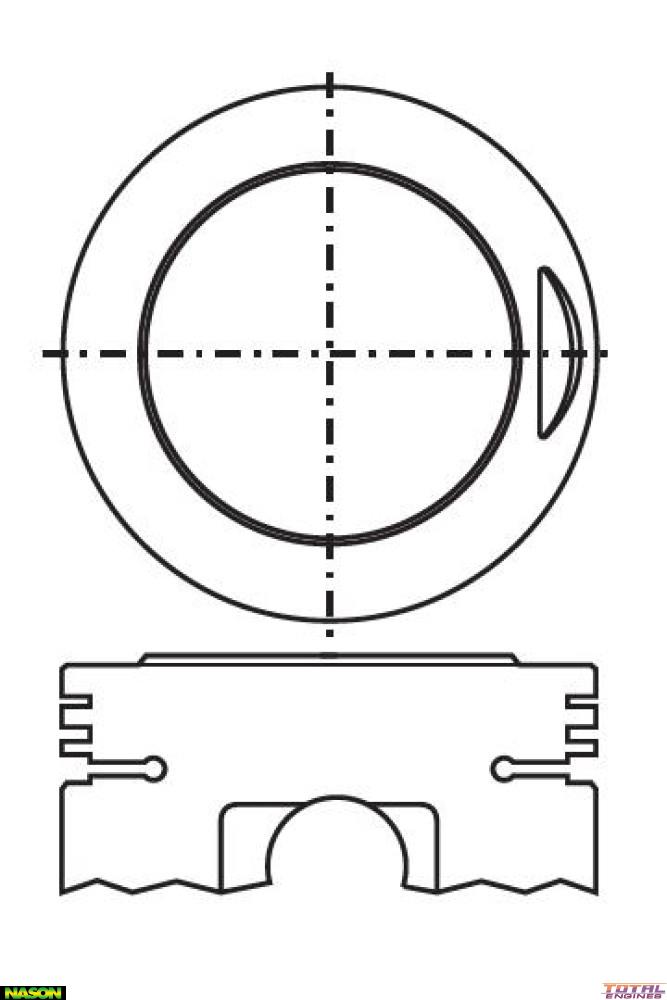

Nason Piston & pin set

Out Of Stock

Specifications
Size: 1.50mm Oversize
Ring Set: 2C6175 or 6175
Oil Ring Width: 4.00mm
2nd Ring Width: 2.00mm
Top Ring Width: 1.50mm
Piston to Bore: See Label on Box
Skirt Coating: No
Pin Type: Press Fit
Pin Size: 20.00mm x 65.00mm
Comp Height: 29.00mm + 0.80mm
Length: 61.70mm
Piston Type: Cast
Head Type: Dome Top with 1 Valve Relief
Size: 1.50mm / .060"
Std Bore Size: 77.00mm
Piston Set: 4 x Piston & Pins

Tick This part will fit the following Vehicles:

Mazda 323 BD (1.3 Litre 4 Cyl E3 SOHC 8v):
  • BD103 FWD Hatchback 4 Door [01/1980 to 10/1985] 48KW With Auto or Manual Transmission
  • BD103 FWD Hatchback 2 Door [10/1980 to 10/1985] 48KW With Auto or Manual Transmission

Description

Nason, 1.50mm Oversize
