Mazda >> 323 >> BD >> 1.5 Litre 4 Cyl E5 SOHC 8v >> BD105 11/1982 - 10/1985 4 Door Sedan >> Nason Piston & pin set

Nason Piston & pin set Fits Mazda 323 BD BD105 Sedan [11/1982 to 10/1985] (1.5L E5 4 Cyl SOHC CARB)

Part
Nason logo

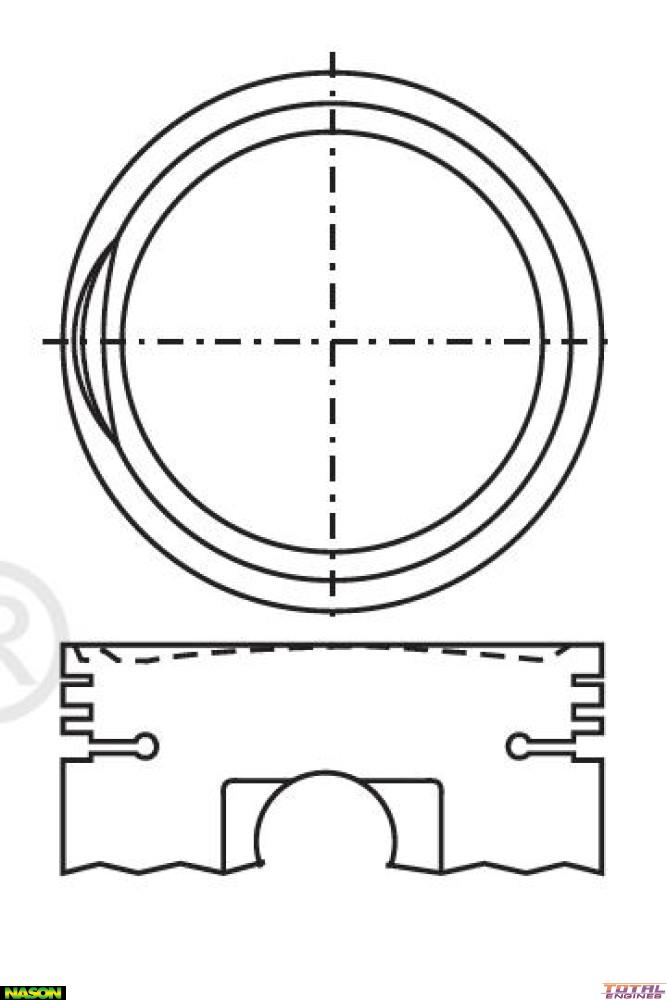

Nason Piston & pin set

$113.62

Specifications
Piston Set: 4 x Piston & Pins
Std Bore Size: 77.00mm
Size: 1.00mm / .040"
Head Type: Dish Top with 1 Valve Relief
Piston Type: Cast
Length: 61.00mm
Comp Height: 29.00mm - 0.50mm
Pin Size: 20.00mm x 65.00mm
Pin Type: Press Fit
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 1.50mm
2nd Ring Width: 2.00mm
Oil Ring Width: 4.00mm
Ring Set: 2C6175 or 6175
Size: 1.00mm Oversize

Tick This part will fit the following Vehicles:

Mazda 323 BD (1.5 Litre 4 Cyl E5 SOHC 8v):
  • BD105 FWD Hatchback 2 Door [10/1980 to 09/1985] 59KW With Auto or Manual Transmission
  • BD105 FWD Sedan 4 Door [11/1982 to 10/1985] 59KW With Auto or Manual Transmission

Description

Nason, 1.00mm Oversize
