Mazda >> 323 >> BF >> 1.5 Litre 4 Cyl E5 SOHC 8v >> BF5S 01/1985 - 12/1989 4 Door Hatchback >> Nason Piston & pin set

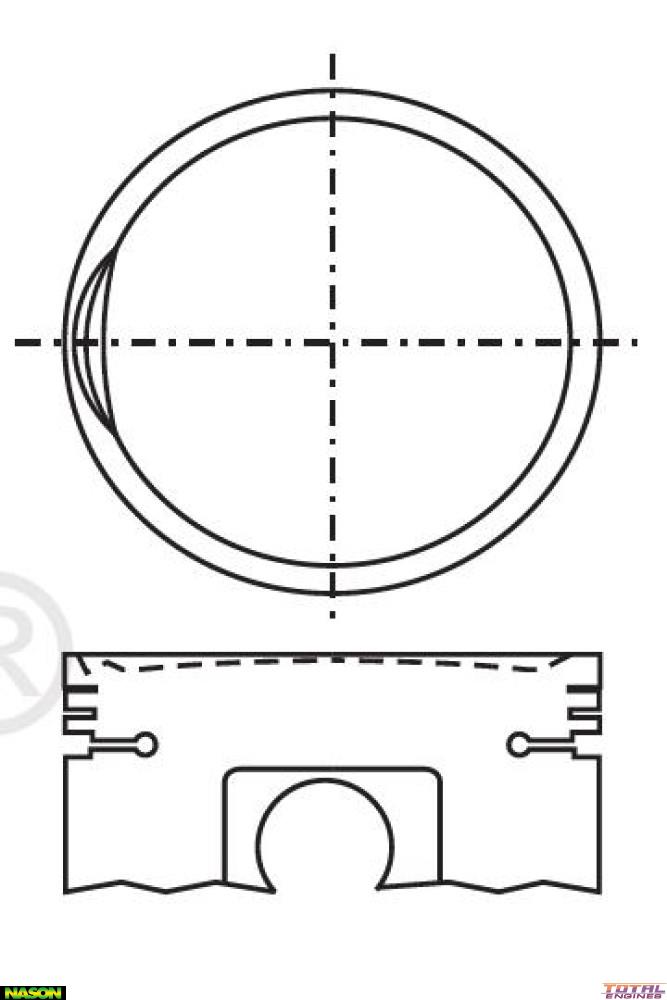

Nason Piston & pin set Fits Mazda 323 BF BF5S Hatchback [01/1985 to 12/1989] (1.5L E5 4 Cyl SOHC CARB)

Part
Nason logo

Nason Piston & pin set

Out Of Stock

Specifications
Size: 1.50mm Oversize
Ring Set: 2C6154
Oil Ring Width: 4.00mm
2nd Ring Width: 1.50mm
Top Ring Width: 1.20mm
Piston to Bore: See Label on Box
Skirt Coating: No
Pin Type: Press Fit
Pin Size: 20.00mm x 65.00mm
Comp Height: 29.00mm - 2.20mm
Length: 61.00mm
Piston Type: Cast
Head Type: Dish Top with 1 Valve Relief
Size: Std
Std Bore Size: 77.00mm
Piston Set: 4 x Piston & Pins

Tick This part will fit the following Vehicles:

Mazda 323 BD (1.5 Litre 4 Cyl E5 SOHC 8v):
  • BD105 FWD Hatchback 2 Door [03/1981 to 09/1985] 54KW With Auto or Manual Transmission
  • BD105 FWD Hatchback 4 Door [03/1981 to 09/1985] 54KW With Auto or Manual Transmission
  • BD105 FWD Sedan 4 Door [03/1981 to 09/1985] 54KW With Auto or Manual Transmission
Mazda 323 BF (1.5 Litre 4 Cyl E5 SOHC 8v):
  • BF5S FWD Hatchback 4 Door [01/1985 to 12/1989] With Auto or Manual Transmission

Description

Nason, 1.50mm Oversize
