Mazda >> 323 >> FA >> 1.3 Litre 4 Cyl TC SOHC 8v >> FA4TV 01/1979 - 12/1986 4 Door Wagon >> Nason Piston & pin set

Nason Piston & pin set Fits Mazda 323 FA FA4TV Wagon [01/1979 to 12/1986] (1.3L TC 4 Cyl SOHC CARB)

Part
Nason logo

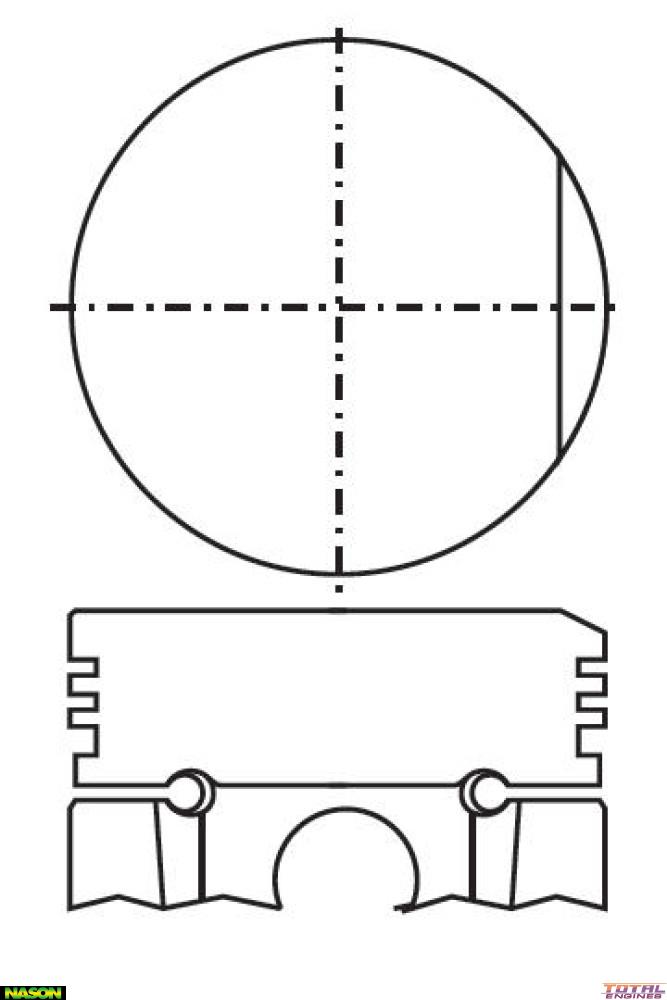

Nason Piston & pin set

Out Of Stock

Specifications
Piston Set: 4 x Piston & Pins
Std Bore Size: 73.00mm
Size: 1.00mm / .040"
Head Type: Flat Top
Piston Type: Cast
Length: 69.00mm
Comp Height: 37.10mm
Pin Size: 20.00mm x 56.00mm
Pin Type: Full Flaoting
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 2.00mm
2nd Ring Width: 2.00mm
Oil Ring Width: 4.00mm
Ring Set: 2C6714 or 6714
Size: 1.00mm Oversize

Tick This part will fit the following Vehicles:

Mazda 323 FA (1.3 Litre 4 Cyl TC SOHC 8v):
  • FA4TS RWD Hatchback 2 Door [03/1977 to 12/1981] 44KW With Auto or Manual Transmission
  • FA4TS RWD Hatchback 4 Door [03/1977 to 12/1981] 44KW With Auto or Manual Transmission
  • FA4TV RWD Wagon 4 Door [01/1979 to 12/1986] 44KW With Manual Transmission

Description

Nason, 1.00mm Oversize
