Mazda >> 323 >> FA >> 1.3 Litre 4 Cyl TC SOHC 8v >> FA4TV 01/1979 - 12/1986 4 Door Wagon >> Nason Piston & Pin Set

Nason Piston & Pin Set Fits Mazda 323 FA FA4TV Wagon [01/1979 to 12/1986] (1.3L TC 4 Cyl SOHC CARB)

Part
Nason logo

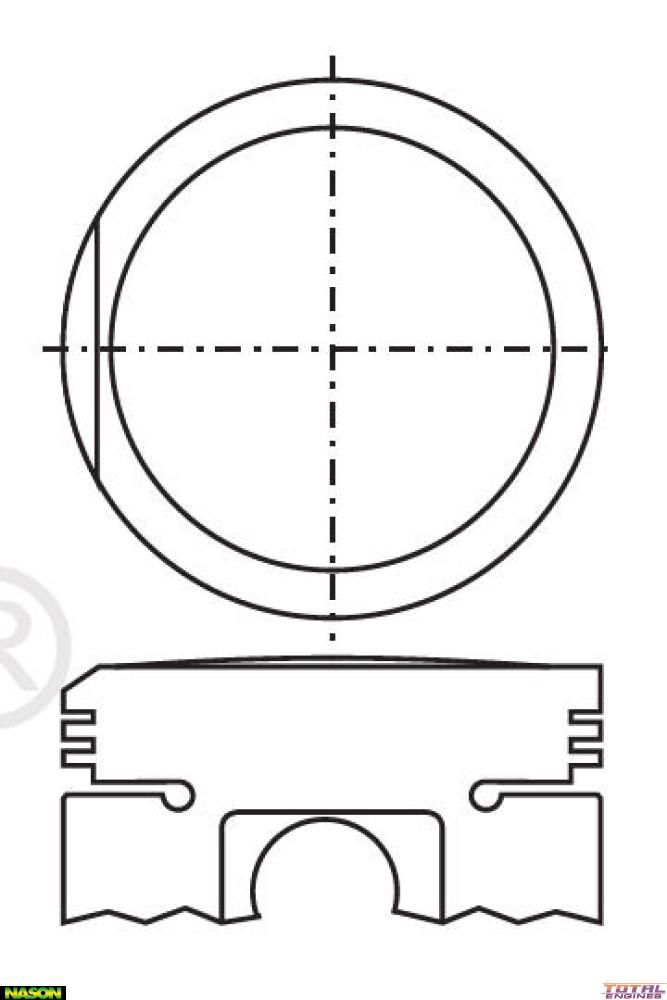

Nason Piston & Pin Set

Out Of Stock

Specifications
Pin Type: Press Fit
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 1.50mm
2nd Ring Width: 1.50mm
Oil Ring Width: 4.00mm
Ring Set: 2C4347 or 4347
Size: 1.00mm Oversize
Pin Size: 20.00mm x 56.00mm
Comp Height: 31.00mm + 1.30mm
Length: 64.30mm
Piston Type: Cast
Head Type: Dome Top
Size: 1.00mm / .040"
Std Bore Size: 73.00mm
Piston Set: 4 x Piston & Pins

Tick This part will fit the following Vehicles:

Mazda 323 FA (1.3 Litre 4 Cyl TC SOHC 8v):
  • FA4TS RWD Hatchback 2 Door [03/1977 to 12/1981] 44KW With Auto or Manual Transmission
  • FA4TS RWD Hatchback 4 Door [03/1977 to 12/1981] 44KW With Auto or Manual Transmission
  • FA4TV RWD Wagon 4 Door [01/1979 to 12/1986] 44KW With Manual Transmission

Description

Nason, 1.00mm Oversize
