Mazda >> 808 >> SN3A >> 1.3 Litre 4 Cyl TC SOHC 8v >> Savanna 01/1972 - 12/1977 4 Door Wagon >> Nason Piston & pin set

Nason Piston & pin set Fits Mazda 808 SN3A Savanna Wagon [01/1972 to 12/1977] (1.3L TC 4 Cyl SOHC CARB)

Part
Nason logo

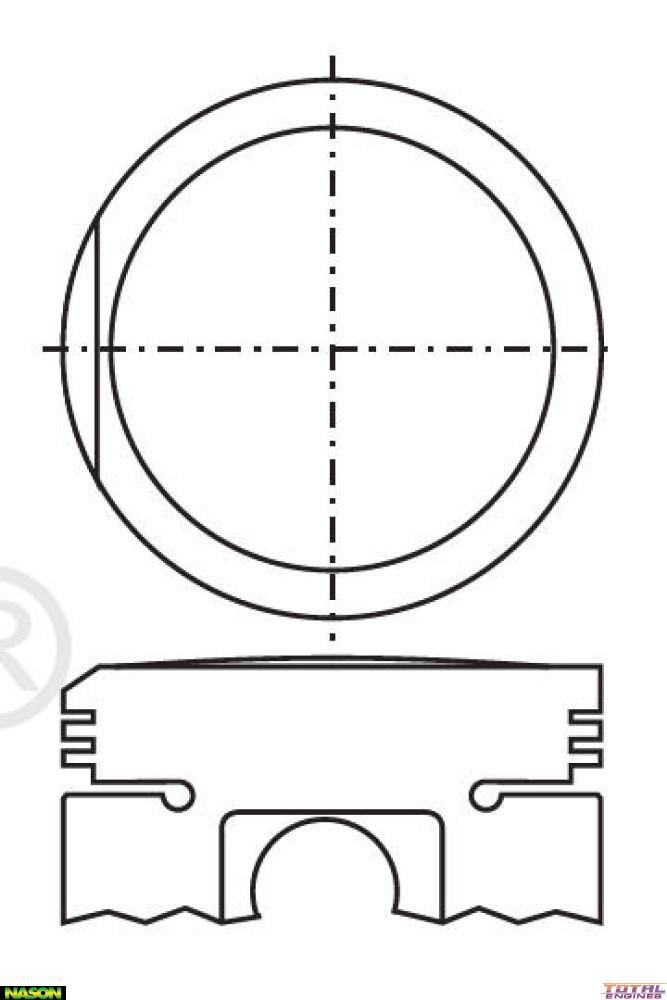

Nason Piston & pin set

Out Of Stock

Specifications
Piston Set: 4 x Piston & Pins
Std Bore Size: 73.00mm
Size: 1.00mm / .040"
Head Type: Dome Top
Piston Type: Cast
Length: 64.30mm
Comp Height: 31.00mm + 1.30mm
Pin Size: 20.00mm x 56.00mm
Pin Type: Press Fit
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 1.50mm
2nd Ring Width: 1.50mm
Oil Ring Width: 4.00mm
Ring Set: 2C4347 or 4347
Size: 1.00mm Oversize

Tick This part will fit the following Vehicles:

Mazda 808 SN3A (1.3 Litre 4 Cyl TC SOHC 8v):
  • Savanna RWD Wagon 4 Door [01/1972 to 12/1977] With Auto or Manual Transmission
  • Savanna STB RWD Coupe 2 Door [01/1972 to 12/1977] With Auto or Manual Transmission
  • Savanna STB RWD Sedan 4 Door [01/1972 to 12/1977] With Auto or Manual Transmission

Description

Nason, 1.00mm Oversize
