Mazda >> B2200 >> (No Series) >> 2.2 Litre 4 Cyl F2 SOHC 12v >> UFY02 03/1988 - 11/1991 4 Door Ute >> Nason Piston & Pin Set

Nason Piston & Pin Set Fits Mazda B2200 UFY02 Ute [03/1988 to 11/1991] (2.2L F2 4 Cyl SOHC MPFI)

Part
Nason logo

Nason Piston & Pin Set

Out Of Stock

Specifications
Piston Set: 4 x Piston & Pins
Std Bore Size: 86.00mm
Size: 1.00mm / .040"

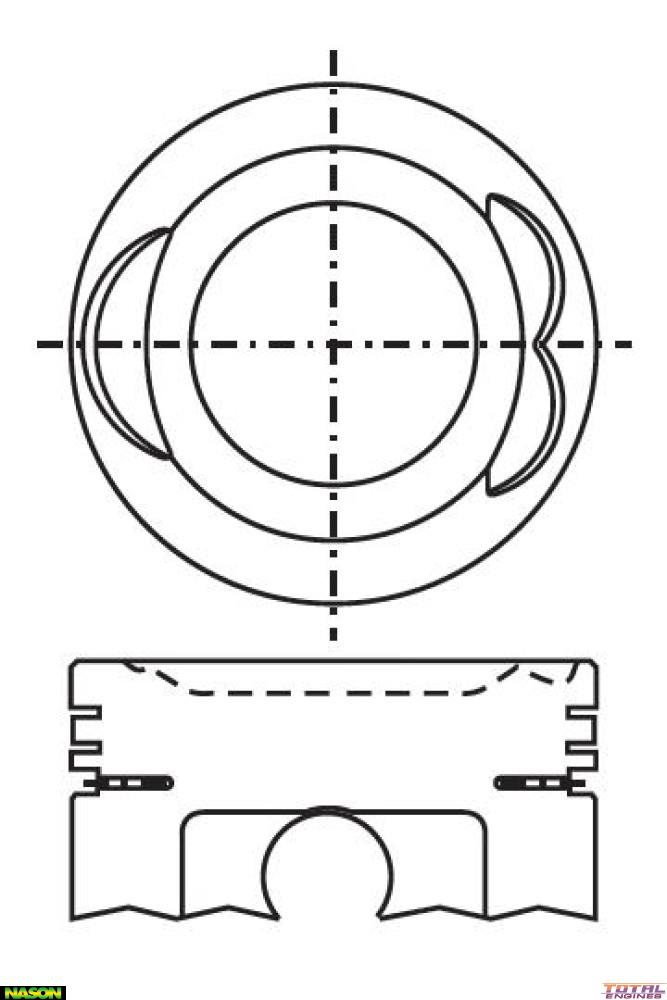

Head Type: Dish Top with 3 Valve Reliefs
Piston Type: Cast
Length: 70.40mm
Comp Height: 36.10mm - 5.40mm
Pin Size: 22.00mm x 67.00mm
Pin Type: Press Fit
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 1.50mm
2nd Ring Width: 1.50mm
Oil Ring Width: 4.00mm
Ring Set: 2M5664 or 5664
Size: 1.00mm Oversize

Alert WARNING! This part will NOT FIT the following Vehicles:

Mazda B2200 (No Series) (2.2 Litre 4 Cyl F2 SOHC 12v):
  • UFY02 RWD Utility 2 Door [01/1993 to 12/1997] 68KW With Manual Transmission

Tick This part will fit the following Vehicles:

Mazda B2200 (2.2 Litre 4 Cyl F2 SOHC 12v):
  • Bravo UFY02 RWD Ute 2 Door [03/1988 to 02/1993] 68KW With Manual Transmission
  • UFY02 RWD Ute 4 Door [03/1988 to 11/1991] 68KW With Auto or Manual Transmission

Description

Nason, 1.00mm Oversize
