Mazda >> B2200 >> (No Series) >> 2.2 Litre 4 Cyl R2 SOHC 8v >> Bravo UFY02 01/1985 - 12/1996 2 Door Ute >> Nason Piston & ring set

Nason Piston & ring set Fits Mazda B2200 Bravo UFY02 Ute [02/1991 to 12/1996] (2.2L R2 4 Cyl SOHC Diesel Inj)

Part
Nason logo

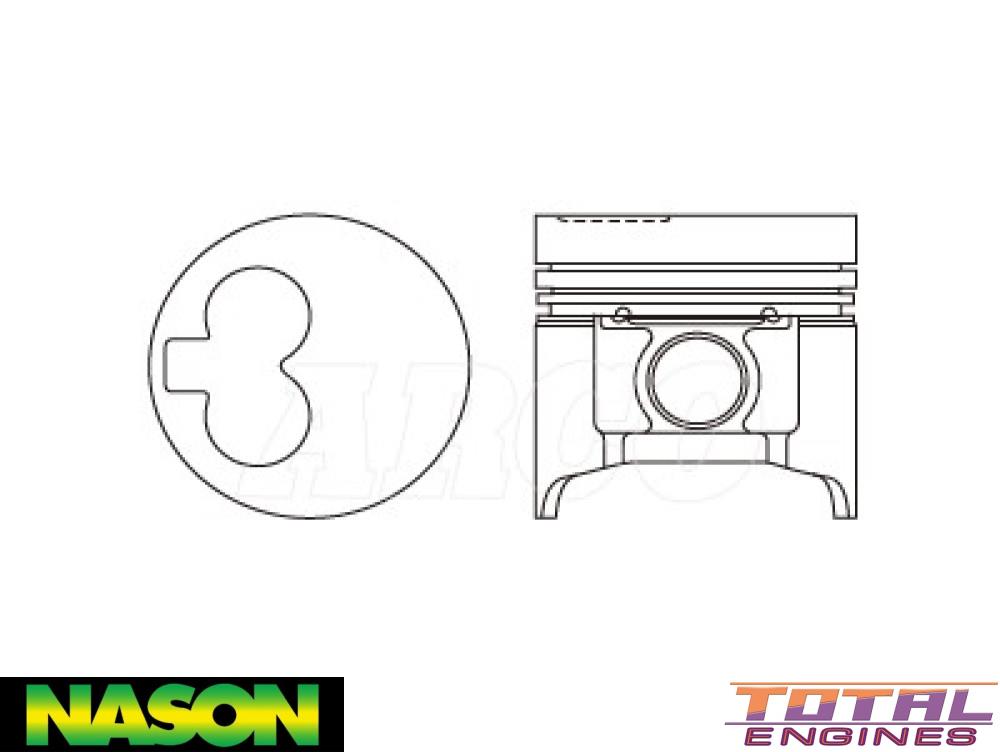

Nason Piston & ring set

Fitment Information:

Inc Rings - Nason, STD Size 02/1991 -->

Out Of Stock

Specifications
Oil Ring Width: 3.00mm
2nd Ring Width: 2.00mm
Top Ring Width: 2.00mm
Piston to Bore: See Label on Box
Skirt Coating: No
Pin Type: Full Floating
Pin Size: 25.00mm x 68.50mm
Comp Height: 47.20mm - 1.50mm
Length: 86.20mm
Piston Type: Cast
Head Type: Flat top
Size: STD
Std Bore Size: 86.00mm
Piston Set: 4 x Pistons, Pins & Rings

Alert WARNING! This part will NOT FIT the following Vehicles:

Mazda B2200 (No Series) (2.2 Litre 4 Cyl F2 SOHC 12v):
  • UFY02 RWD Utility 2 Door [01/1993 to 12/1997] 68KW With Manual Transmission
Mazda B2200 (No Series) (2.2 Litre 4 Cyl R2 SOHC 8v):
  • Bravo UFY02 RWD Ute 2 Door [01/1985 to 01/1991] 47KW With Manual Transmission

Tick This part will fit the following Vehicles:

Mazda B2200 (2.2 Litre 4 Cyl R2 SOHC 8v):
  • Bravo UFY02 RWD Ute 2 Door [02/1991 to 12/1996] 47KW With Manual Transmission

Description

Inc Rings - Nason, STD Size
