Mazda >> B2500 >> UN >> 2.5 Litre 4 Cyl WLAT SOHC 12v >> Bravo DX Freestyle UNY0W 01/2005 - 11/2006 4 Door Ute >> Nason Piston & pin set

Nason Piston & pin set Fits Mazda B2500 UN Bravo DX Freestyle UNY0W Ute [01/2005 to 11/2006] (2.5L WLAT 4 Cyl SOHC Turbo CRD)

Part
Nason logo

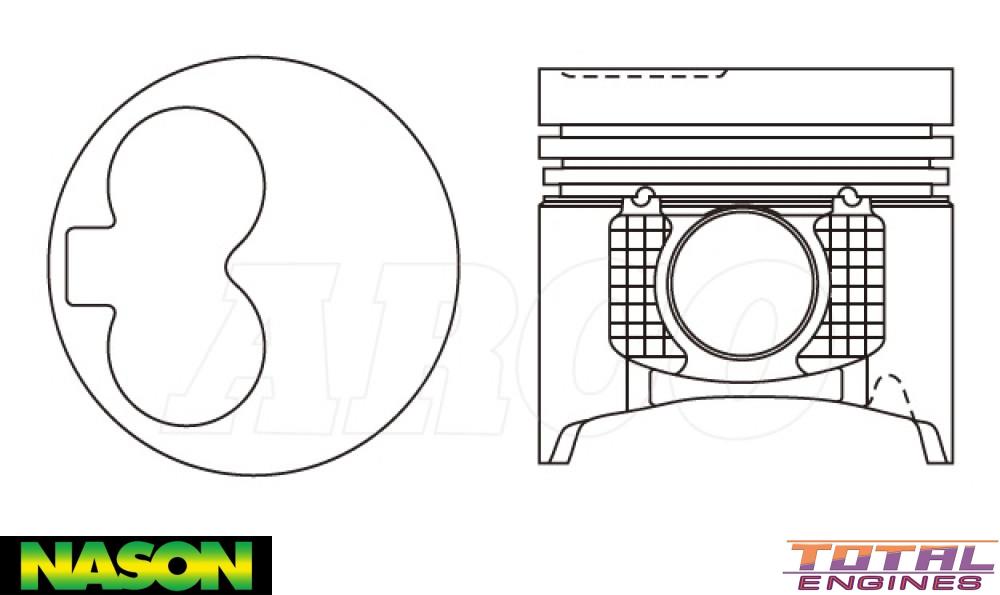

Nason Piston & pin set

Fitment Information:

Oversize - Pistons Only- Does not Include Rings

$575.93

Specifications
Piston Set: 4 x Pistons & Pins
Std Bore Size: 93.00mm
Size: 0.50mm / .020"
Head Type: Clover Leaf
Piston Type: Cast
Length: 87.30mm
Comp Height: 47.80mm, -2.00mm, -2.20mm
Pin Size: 32.00mm x 69.80mm
Pin Type: Full Floating
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 2.50mm
2nd Ring Width: 2.00mm
Oil Ring Width: 3.00mm
Ring Set: 33781-0.50

Alert WARNING! This part will NOT FIT the following Vehicles:

Mazda B2500 UF (2.5 Litre 4 Cyl WL SOHC 12v):
  • UFY0W 4WD Utility 2 Door [01/1996 to 12/2000] 64KW With Manual Transmission

Tick This part will fit the following Vehicles:

Mazda B2500 UN (2.5 Litre 4 Cyl WLAT SOHC 12v):
  • Bravo DX Freestyle UNY0W 4WD Ute 4 Door [11/2002 to 11/2006] 86KW With Manual Transmission
  • Bravo DX Freestyle UNY0W RWD Ute 4 Door [01/2005 to 11/2006] 86KW With Manual Transmission

Description

Combustion Bowl OD

Alfin, Oil Gallery Cooling
