Mazda >> BT-50 >> UP >> 3.2 Litre 5 Cyl P5AT DOHC 20v >> XT UP0YF 04/2012 - 08/2015 4 Door Cab Chassis >> Nason Piston & pin set

Nason Piston & pin set Fits Mazda BT-50 UP XT UP0YF Cab Chassis [04/2012 to 08/2015] (3.2L P5AT 5 Cyl DOHC I/C Turbo Diesel Inj)

Part
Nason logo

Nason Piston & pin set

Fitment Information:

Pistons Only- Does not Include Rings

$768.98

Specifications
Piston Set: 5 x Pistons & Pins
Std Bore Size: 89.90mm
Size: STD
Head Type: Combustion Bowl
Piston Type: Cast
Length: 75.40mm
Comp Height: 48.40mm, -6.80mm, -17.90mm

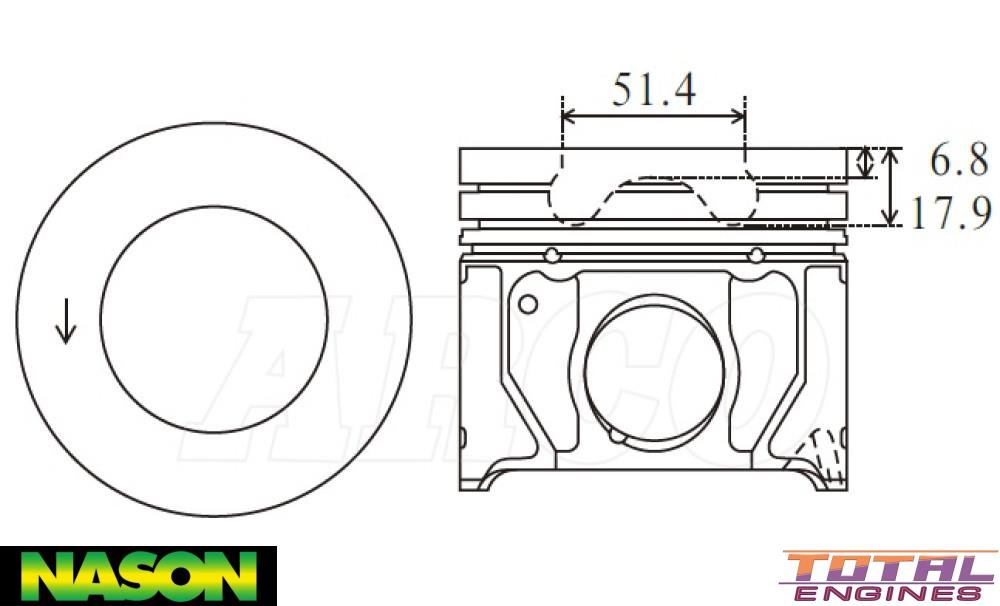

Combustion Bowl OD: 51.40mm
Pin Size: 32.00mm x 74.00mm
Pin Type: Full Floating
Skirt Coating: Yes
Piston to Bore: See Label on Box
Top Ring Width: 2.00mm
2nd Ring Width: 2.00mm
Oil Ring Width: 2.00mm
Ring Set: 50049-STD x 5 OR RSFP5AT-STD X 1

Tick This part will fit the following Vehicles:

Mazda BT-50 UP (3.2 Litre 5 Cyl P5AT DOHC 20v):
  • GT, XT, XTR UP0YF 4WD Wellside 4 Door [11/2011 to 08/2015] 147KW With Auto or Manual Transmission
  • XT Freestyle CAB UP0YF 4WD Cab Chassis 4 Door [11/2011 to 08/2015] 147KW With Auto or Manual Transmission
  • XT Freestyle CAB UP0YF RWD Cab Chassis 4 Door [11/2011 to 08/2015] 147KW With Auto or Manual Transmission
  • XT UP0YF 4WD Cab Chassis 2 Door [11/2011 to 08/2015] 147KW With Auto or Manual Transmission
  • XT UP0YF RWD Cab Chassis 2 Door [11/2011 to 08/2015] 147KW With Manual Transmission
  • XT UP0YF 4WD Cab Chassis 4 Door [11/2011 to 08/2015] 147KW With Auto or Manual Transmission
  • XT UP0YF RWD Cab Chassis 4 Door [04/2012 to 08/2015] 147KW With Manual Transmission
  • XT, XTR UP0YF RWD Wellside 4 Door [11/2011 to 08/2015] 147KW With Auto or Manual Transmission
  • XTR Freestyle CAB UP0YF 4WD Wellside 4 Door [11/2011 to 08/2015] 147KW With Auto or Manual Transmission

Description

Alfin, With Oil Gallery Cooling
