Mazda >> BT-50 >> UR >> 2.2 Litre 4 Cyl P4AT DOHC 16v >> XT UR0YD 09/2015 - 06/2016 2 Door Cab Chassis >> Nason Piston & pin set

Nason Piston & pin set Fits Mazda BT-50 UR XT UR0YD Cab Chassis [09/2015 to 06/2016] (2.2L P4AT 4 Cyl DOHC I/C Turbo Diesel Inj)

Part
Nason logo

Nason Piston & pin set

Fitment Information:

Oversize - Pistons Only- Does not Include Rings - 48.40 Comp Height

$556.63

Specifications
Piston Set: 4 x Pistons & Pins
Std Bore Size: 86.00mm
Size: 0.50mm / .020"
Head Type: Combustion Bowl
Piston Type: Cast
Length: 74.80mm

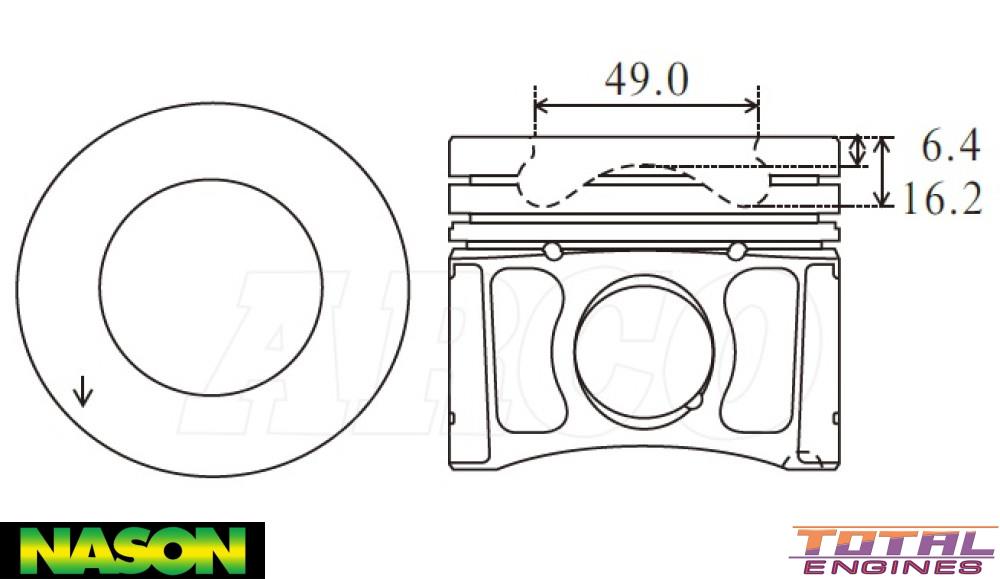

Comp Height: 48.40mm, -6.40mm, -16.20mm
Combustion Bowl OD: 49.00mm
Pin Size: 30.00mm x 67.00mm
Pin Type: Full Floating
Skirt Coating: Yes
Piston to Bore: See Label on Box
Top Ring Width: 2.00mm
2nd Ring Width: 2.00mm
Oil Ring Width: 2.00mm
Ring Set: 50068-0.50mm X 1

Tick This part will fit the following Vehicles:

Mazda BT-50 UP (2.2 Litre 4 Cyl P4AT DOHC 16v):
  • XT UP0YD RWD Cab Chassis 2 Door [11/2011 to 08/2015] 110KW With Auto or Manual Transmission
Mazda BT-50 UR (2.2 Litre 4 Cyl P4AT DOHC 16v):
  • XT UR0YD RWD Cab Chassis 2 Door [09/2015 to 06/2016] 110KW With Auto or Manual Transmission
  • XT UR0YE RWD Cab Chassis 2 Door [07/2016 Onwards] 110KW With Auto or Manual Transmission

Description

Suits Ranger, BT50 & Transit With 48.40 Comp Height

Alfin, With Oil Gallery Cooling
