Mazda >> Bongo Brawny >> (No Series) >> 2.0 Litre 4 Cyl FE SOHC 8v >> SRE9W 01/1984 - 12/1994 3 Door Van >> Nason Piston & pin set

Nason Piston & pin set Fits Mazda Bongo Brawny SRE9W Van [01/1984 to 12/1994] (2.0L FE 4 Cyl SOHC CARB)

Part
Nason logo

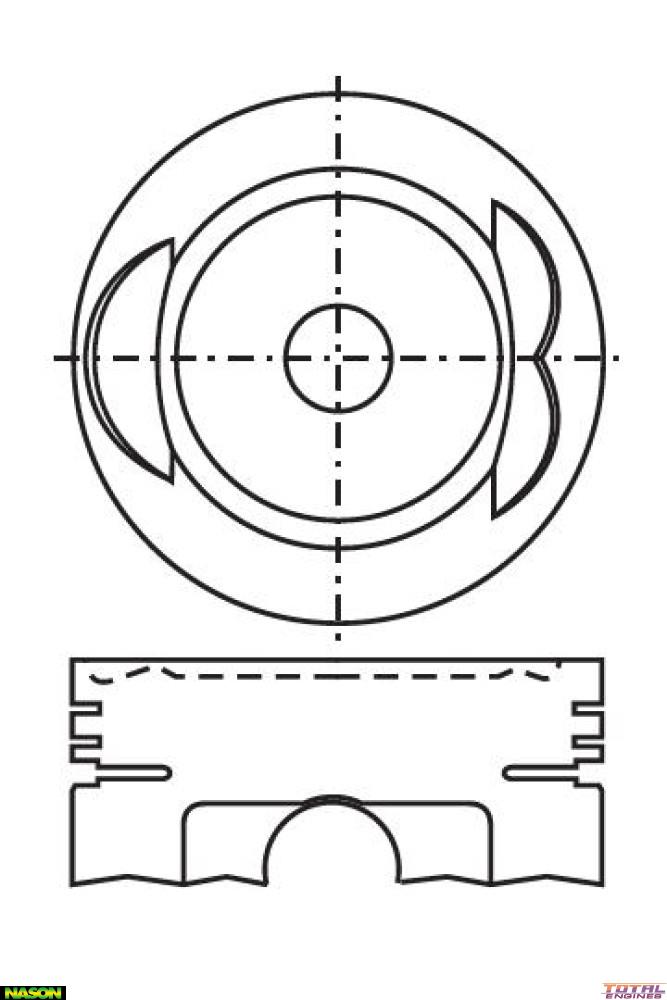

Nason Piston & pin set

Fitment Information:

Nason, STD Size Dish Top With Three Valve Reliefs

Out Of Stock

Specifications
Piston Set: 4 x Piston & Pins
Std Bore Size: 86.00mm
Size: Std
Head Type: Dish Top with 3 Valve Reliefs
Piston Type: Cast
Length: 71.10mm
Comp Height: 34.10mm - 2.70mm
Pin Size: 22.00mm x 67.00mm
Pin Type: Press Fit
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 1.50mm
2nd Ring Width: 1.50mm
Oil Ring Width: 4.00mm
Ring Set: 2M5664 or 5664

Tick This part will fit the following Vehicles:

Mazda Bongo Brawny (2.0 Litre 4 Cyl FE SOHC 8v):
  • SRE9W RWD Van 3 Door [01/1984 to 12/1994] 61KW With Auto or Manual Transmission

Description

Nason, STD Size
