Mazda >> Bongo Friendee >> SG >> 2.5 Litre 4 Cyl WLAT SOHC 12v >> SGL3 06/1995 - 09/2004 3 Door Van >> Nason Piston & pin set

Nason Piston & pin set Fits Mazda Bongo Friendee SG SGL3 Van [06/1995 to 09/2004] (2.5L WLAT 4 Cyl SOHC Turbo CRD)

Part
Nason logo

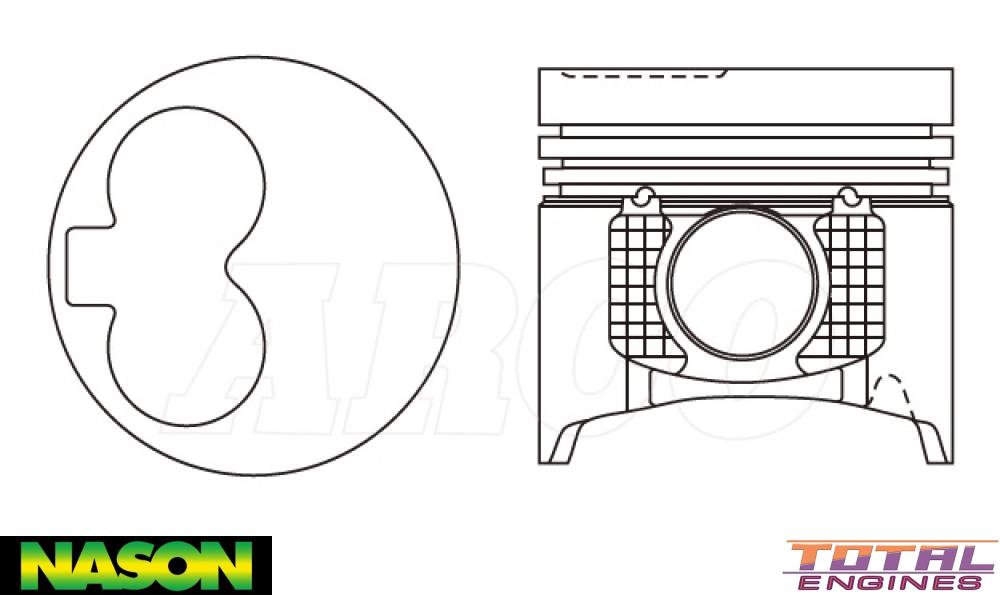

Nason Piston & pin set

Fitment Information:

Oversize 1.00mm - Pistons Only- Does not Include Rings

Out Of Stock

Specifications
Piston Set: 4 x Pistons & Pins
Std Bore Size: 93.00mm
Size: 1.00mm / .040"
Head Type: Clover Leaf
Piston Type: Cast
Length: 87.30mm
Comp Height: 47.80mm, -2.00mm, -2.20mm
Pin Size: 32.00mm x 69.80mm
Pin Type: Full Floating
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 2.50mm
2nd Ring Width: 2.00mm
Oil Ring Width: 3.00mm
Ring Set: 33781-1.00
Size: Oversize 1.00mm

Tick This part will fit the following Vehicles:

Mazda Bongo Friendee SG (2.5 Litre 4 Cyl WLAT SOHC 12v):
  • SGL3 RWD Van 3 Door [06/1995 to 09/2004] 93KW With Auto Transmission
  • SGL5 4WD Van 3 Door [06/1995 to 09/2004] 93KW With Auto Transmission

Description

Combustion Bowl OD

Alfin, Oil Gallery Cooling
