Mazda >> Bounty >> UN >> 2.5 Litre 4 Cyl WL SOHC 12v >> UNY0W 02/1999 - 12/2003 2 Door Ute >> Nason Piston & pin set

Nason Piston & pin set Fits Mazda Bounty UN UNY0W Ute [02/1999 to 12/2003] (2.5L WL 4 Cyl SOHC Diesel Inj)

Part
Nason logo

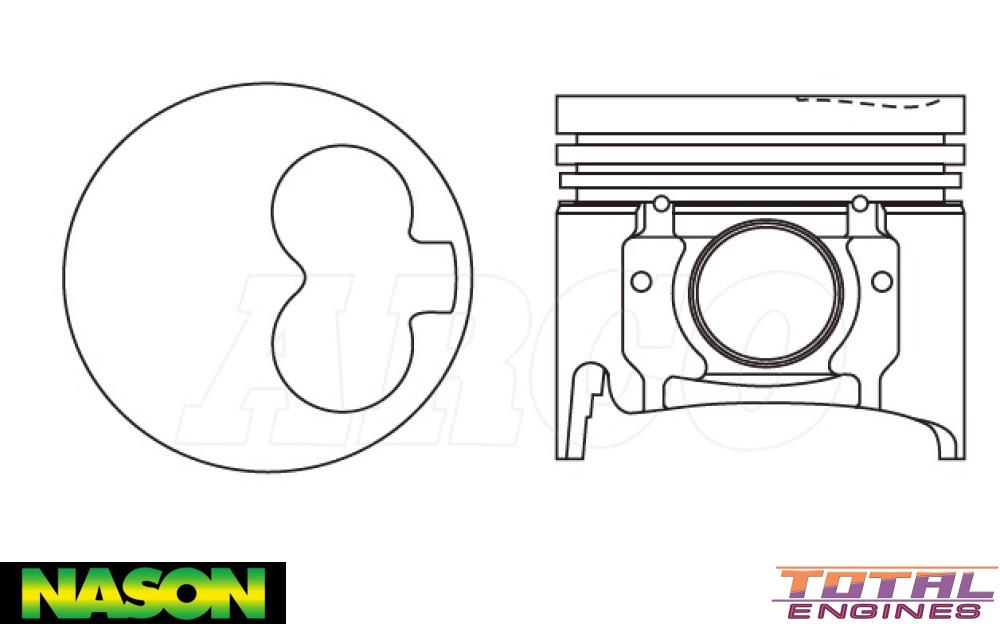

Nason Piston & pin set

Fitment Information:

Oversize - Pistons Only- Does not Include Rings

$410.70

Specifications
Piston Set: 4 x Pistons & Pins
Std Bore Size: 93.00mm
Size: 0.50mm / .020"
Head Type: Clover Leaf
Piston Type: Cast
Length: 87.50mm
Comp Height: 51.70mm, -1.30mm, -3.20mm
Pin Size: 32.00mm x 70.00mm
Pin Type: Full Floating
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 2.50mm
2nd Ring Width: 2.00mm
Oil Ring Width: 3.00mm
Ring Set: 33781-0.50

Alert WARNING! This part will NOT FIT the following Vehicles:

Mazda Bounty UN (2.5 Litre 4 Cyl WLAT SOHC 12v):
  • UNY0W 4WD Utility 2 Door [02/1999 to 11/2006] 86KW With Manual Transmission
  • UNY0W RWD Utility 2 Door [02/1999 to 11/2006] 86KW With Manual Transmission
  • UNY0W 4WD Utility 4 Door [02/1999 to 11/2006] 86KW With Manual Transmission
  • UNY0W RWD Utility 4 Door [02/1999 to 11/2006] 86KW With Manual Transmission

Tick This part will fit the following Vehicles:

Mazda Bounty UN (2.5 Litre 4 Cyl WL SOHC 12v):
  • UNY0W RWD Ute 2 Door [02/1999 to 12/2003] With Manual Transmission

Description

Combustion Bowl OD

Alfin
