Mazda >> E2500 >> (No Series) >> 2.5 Litre 4 Cyl WL SOHC 12v >> SDY0W 08/1997 - 10/1999 2 Door Cab Chassis >> Nason Piston & pin set

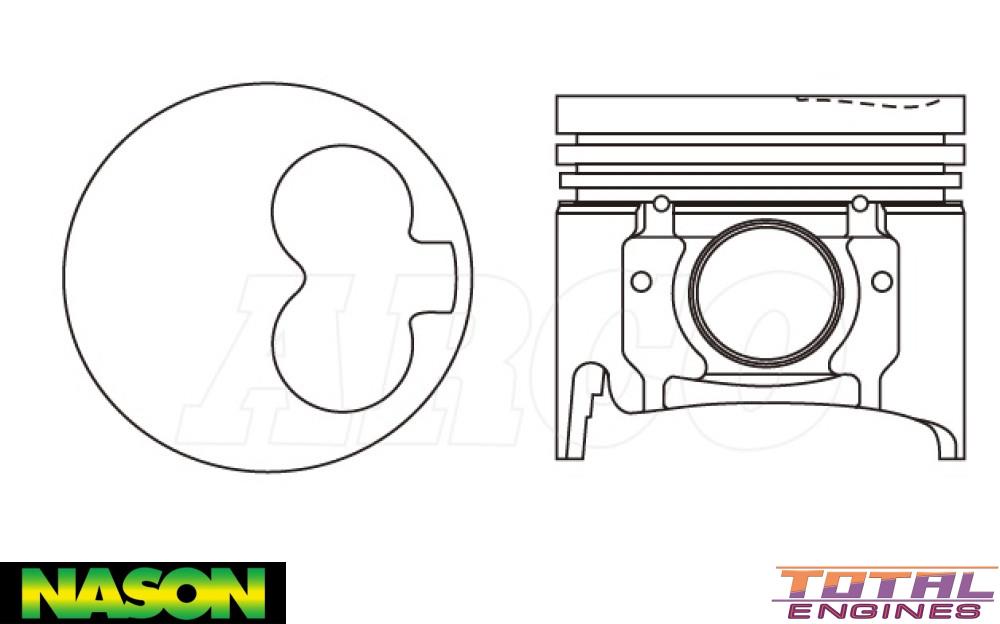

Nason Piston & pin set Fits Mazda E2500 SDY0W Cab Chassis [08/1997 to 10/1999] (2.5L WL 4 Cyl SOHC Diesel Inj)

Part
Nason logo

Nason Piston & pin set

Fitment Information:

Oversize - Pistons Only- Does not Include Rings

$410.70

Specifications
Piston Set: 4 x Pistons & Pins
Std Bore Size: 93.00mm
Size: 0.50mm / .020"
Head Type: Clover Leaf
Piston Type: Cast
Length: 87.50mm
Comp Height: 51.70mm, -1.30mm, -3.20mm
Pin Size: 32.00mm x 70.00mm
Pin Type: Full Floating
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 2.50mm
2nd Ring Width: 2.00mm
Oil Ring Width: 3.00mm
Ring Set: 33781-0.50

Tick This part will fit the following Vehicles:

Mazda E2500 (2.5 Litre 4 Cyl WL SOHC 12v):
  • LWB RWD 3 Door [08/1997 to 10/1999] 61KW With Manual Transmission
  • LWB SKY0W RWD Van 3 Door [10/1999 to 05/2003] 61KW With Manual Transmission
  • SDY0W RWD Cab Chassis 2 Door [08/1997 to 10/1999] 61KW With Manual Transmission
  • SLY0W RWD Cab Chassis 2 Door [10/1999 to 12/2001] 61KW With Manual Transmission

Description

Combustion Bowl OD

Alfin
