Mercedes Benz >> GLE-Class >> W166 >> 2.2 Litre 4 Cyl OM 651.960 DOHC 16v >> 10/2015 - 05/2019 4 Door SUV >> Nason Piston & pin set

Nason Piston & pin set Fits Mercedes Benz GLE-Class W166 SUV [10/2015 to 05/2019] (2.2L OM 651.960 4 Cyl DOHC Turbo CRD)

Part
Nason logo

Nason Piston & pin set

$865.51

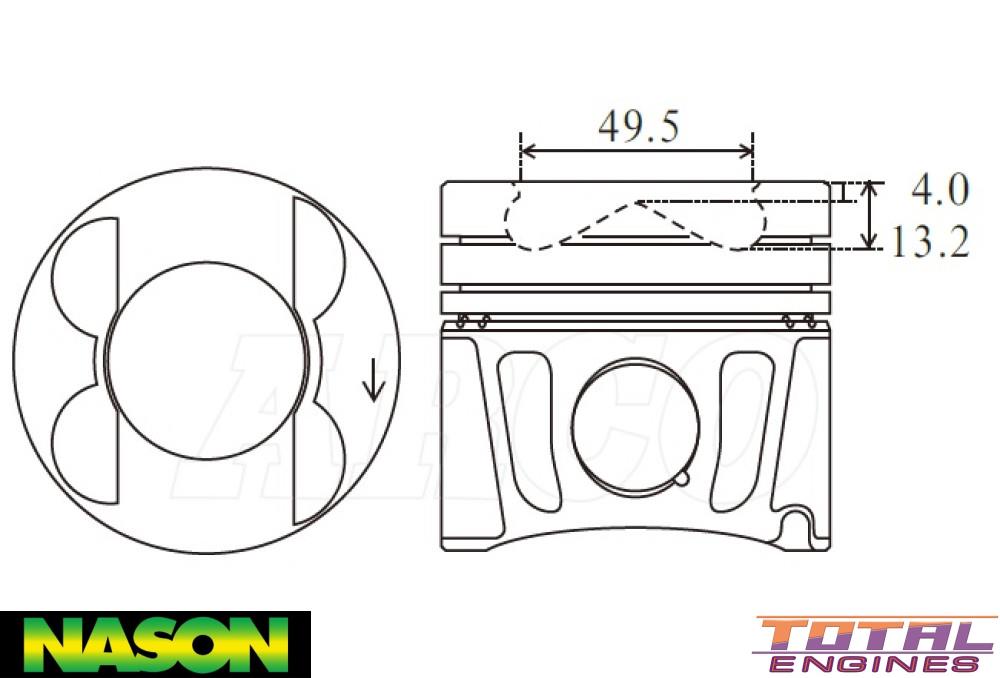

Specifications
Piston Set: 4 x Pistons & Pins
Std Bore Size: 83.00mm
Size: 0.50mm
Head Type: Combustion Bowl With 4 Valve Reliefs
Piston Type: Cast
Length: 75.50mm
Comp Height: 48.50mm - 13.20mm -4.00mm
Combustion Bowl OD: 49.50mm
Pin Size: 30.00mm x 66.00mm
Pin Type: Full Floating
Skirt Coating: Yes
Piston to Bore: See Label on Box
Top Ring Width: 2.00mm
2nd Ring Width: 1.75mm
Oil Ring Width: 2.00mm
Ring Set: 2D7440-0.50MM
Size: 0.50mm Oversize

Tick This part will fit the following Vehicles:

Mercedes Benz GLE-Class W166 (2.2 Litre 4 Cyl OM 651.960 DOHC 16v):
  • AWD SUV 4 Door [10/2015 to 05/2019] 150KW With Auto Transmission
Mercedes Benz ML250 CDI W166 (2.2 Litre 4 Cyl OM 651.960 DOHC 16v):
  • BlueTEC AWD SUV 4 Door [04/2012 to 09/2015] 150KW With Auto Transmission

Description

Nason, 0.50mm Oversize
