Mitsubishi >> 380 >> DB >> 3.8 Litre V6 6G75 SOHC 24v >> ES, LS, LX, SX, VR-X, GT 08/2005 - 04/2008 4 Door >> Nason Piston & pin set

Nason Piston & pin set Fits Mitsubishi 380 DB ES, LS, LX, SX, VR-X, GT [08/2005 to 04/2008] (3.8L 6G75 V6 SOHC MPFI)

Part
Nason logo

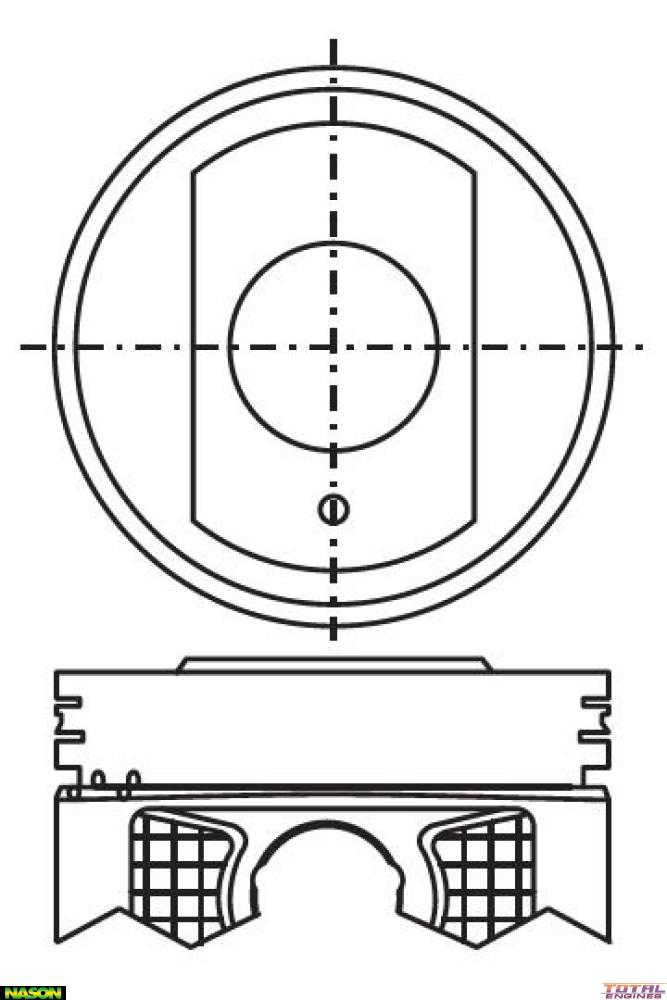

Nason Piston & pin set

Out Of Stock

Specifications
Piston Set: 6 x Piston & Pins
Std Bore Size: 95.00mm
Size: Std
Head Type: Dome Top
Piston Type: Cast
Length: 56.70mm
Comp Height: 29.10mm + 0.20mm
Pin Size: 22.00mm x 58.00mm
Pin Type: Full Floating
Skirt Coating: Yes
Piston to Bore: See Label on Box
Top Ring Width: 1.20mm
2nd Ring Width: 1.20mm
Oil Ring Width: 2.00mm
Ring Set: 2C5169

Tick This part will fit the following Vehicles:

Mitsubishi 380 DB (3.8 Litre V6 6G75 SOHC 24v):
  • ES, LS, LX, SX, VR-X, GT FWD 4 Door [08/2005 to 04/2008] 175KW With Auto Transmission
  • ES, VR-X, SX DB1#41 FWD Sedan 4 Door [08/2005 to 04/2008] 175KW With Manual Transmission

Description

Nason, STD Size
