Mitsubishi >> Airtrek >> ZE >> 2.4 Litre 4 Cyl 4G64 SOHC 8v >> 12/2002 - 05/2004 4 Door >> Nason Piston & pin set

Nason Piston & pin set Fits Mitsubishi Airtrek ZE [12/2002 to 05/2004] (2.4L 4G64 4 Cyl SOHC MPFI)

Part
Nason logo

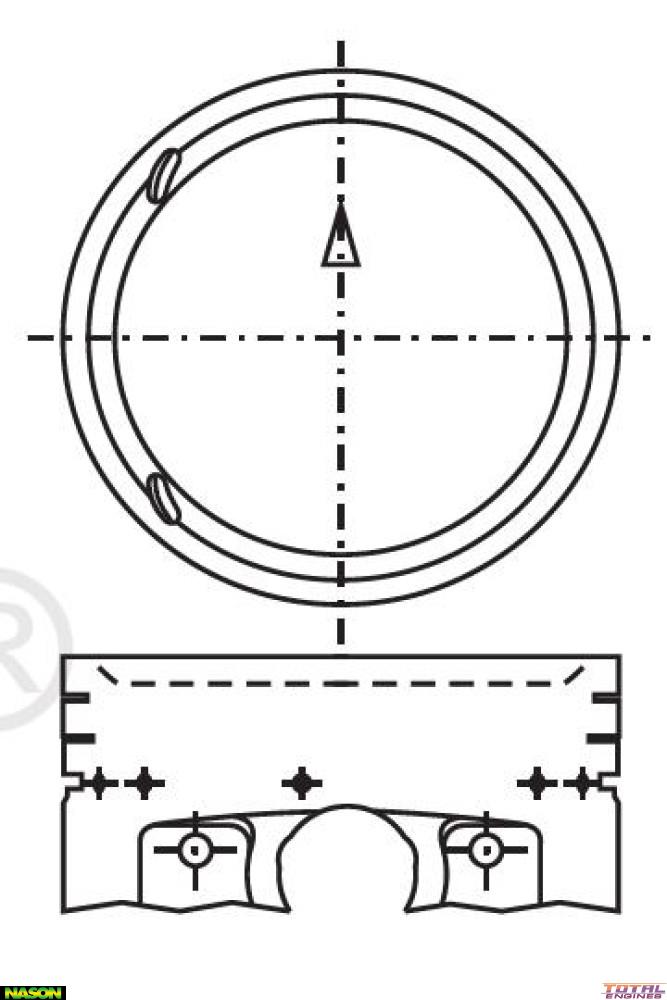

Nason Piston & pin set

Fitment Information:

Nason, STD Size Dish Top

$247.75

Specifications
Piston Set: 4 x Piston & Pins
Std Bore Size: 86.50mm
Size: Std
Head Type: Dish Top with 2 Valve Reliefs
Piston Type: Cast
Length: 67.00mm
Comp Height: 35.00mm - 4.10mm
Ring Set: 2C4780
Oil Ring Width: 2.80mm
2nd Ring Width: 1.50mm
Top Ring Width: 1.20mm
Piston to Bore: See Label on Box
Skirt Coating: No
Pin Type: Press Fit
Pin Size: 22.00mm x 62.00mm

Alert WARNING! This part will NOT FIT the following Vehicles:

Mitsubishi Airtrek (No Series) (2.0 Litre 4 Cyl 4G63 SOHC 8v):
  • CU2W 4WD Wagon 4 Door [06/2001 to 10/2005] 93KW With Auto Transmission
  • CU2W FWD Wagon 4 Door [06/2001 to 10/2005] 93KW With Auto Transmission
Mitsubishi Airtrek (No Series) (2.4 Litre 4 Cyl 4G69 SOHC 16v):
  • CU5W AWD Wagon 4 Door [03/2003 to 09/2006] 118KW With Auto Transmission

Tick This part will fit the following Vehicles:

Mitsubishi Airtrek ZE (2.4 Litre 4 Cyl 4G64 SOHC 8v):
  • 4WD 4 Door [12/2002 to 05/2004] 100KW With Auto Transmission

Description

Nason, STD Size
