Mitsubishi >> Challenger >> PC >> 2.5 Litre 4 Cyl 4D56-T DOHC 16v >> KH4 12/2009 - 12/2015 4 Door Wagon >> Nason Piston & pin set

Nason Piston & pin set Fits Mitsubishi Challenger PC KH4 Wagon [12/2009 to 12/2015] (2.5L 4D56-T 4 Cyl DOHC I/C Turbo CRD)

Part
Nason logo

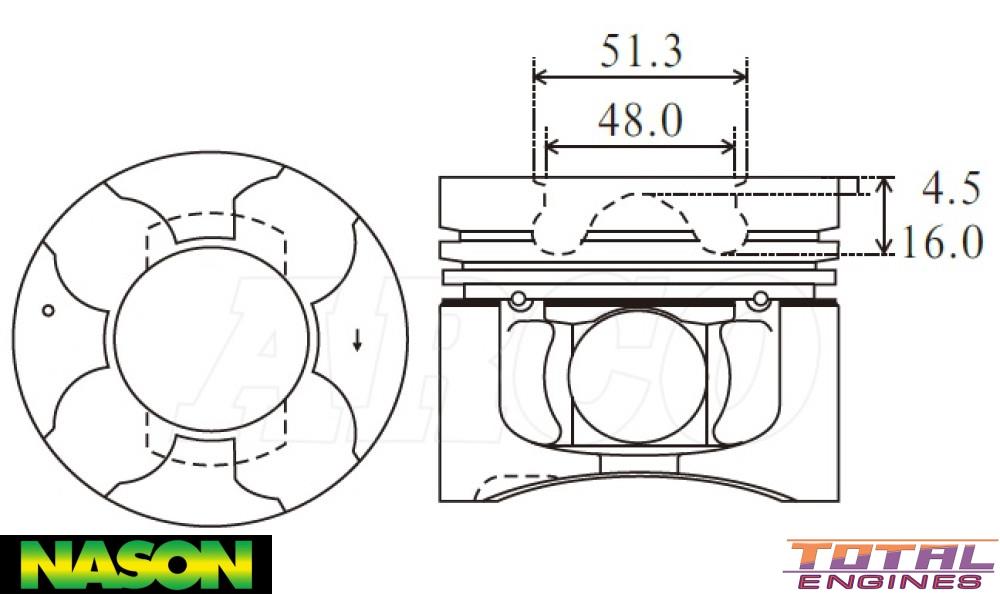

Nason Piston & pin set

Fitment Information:

Oversize - Pistons only - Suits Engines With 48mm Combustion Bowl

$740.03

Specifications
Piston Set: 4 x Pistons & Pins
Std Bore Size: 91.10mm
Size: 0.50mm / .020"
Head Type: Combustion Bowl With 4 Valve Reliefd
Piston Type: Cast
Length: 78.20mm
Comp Height: 48.20mm, -4.50mm -16.00mm
Combustion Bowl OD: 48.00mm
Pin Size: 32.00mm x 75.00mm
Pin Type: Full Floating
Skirt Coating: Yes
Piston to Bore: See Label on Box
Top Ring Width: 2.50mm Half Keystone
2nd Ring Width: 2.00mm Half Keystone
Oil Ring Width: 3.00mm
Ring Set: 33454-0.50 X 4
Size: Suits Engines With 48mm Combustion Bowl

Alert WARNING! This part will NOT FIT the following Vehicles:

Mitsubishi Challenger (No Series) (2.5 Litre 4 Cyl 4D56-T DOHC 16v):
  • K94 4WD Wagon 4 Door [07/1996 to 07/1997] 78KW With Auto or Manual Transmission
  • K94 4WD Wagon 4 Door [01/1997 to 12/1998] 77KW With Manual Transmission

Tick This part will fit the following Vehicles:

Mitsubishi Challenger PB (2.5 Litre 4 Cyl 4D56-T DOHC 16v):
  • KG4 RWD Wagon 4 Door [10/2011 to 05/2013] 131KW With Manual Transmission
Mitsubishi Challenger PB,KG4 (2.5 Litre 4 Cyl 4D56-T DOHC 16v):
  • RWD 4 Door [10/2011 to 05/2013] 131KW With Auto Transmission
Mitsubishi Challenger PC (2.5 Litre 4 Cyl 4D56-T DOHC 16v):
  • KH4 4WD Wagon 4 Door [12/2009 to 12/2015] 131KW With Manual Transmission
  • KH4 4WD Wagon 4 Door [12/2009 to 12/2015] 131KW With Auto Transmission

Description

With 48mm Combustion Bowl 131KW- See Notes For Piston Position

Alfin, Oil Gallery Cooling & Anodized Head

One Line On The Piston Pin Boss = Cylinders 1 and 3

Two Lines On The Piston Pin Boss = Cylinders 2 and 4
