Mitsubishi >> Delica D5 >> CV1W >> 2.4 Litre 4 Cyl 4B12 DOHC 16v >> CV5W 05/2007 - 12/2009 3 Door Van >> Nason Piston & pin set

Nason Piston & pin set Fits Mitsubishi Delica D5 CV1W CV5W Van [05/2007 to 12/2009] (2.4L 4B12 4 Cyl DOHC VVT MPFI)

Part
Nason logo

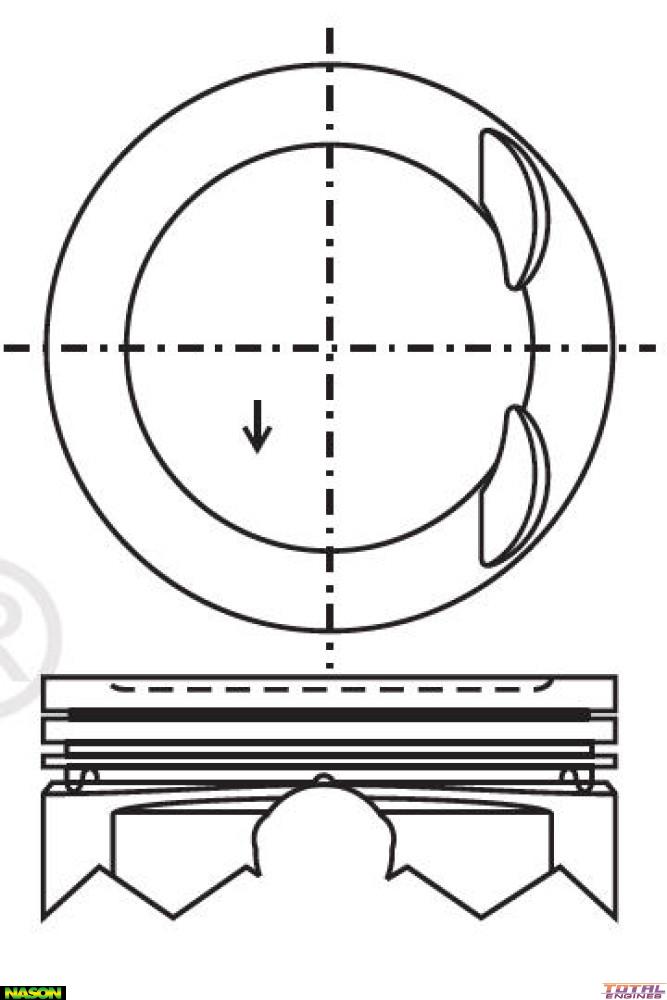

Nason Piston & pin set

$193.97

Specifications
Piston Set: 4 x Piston & Pins
Std Bore Size: 88.00mm
Size: Std
Head Type: Dish Top with 2 Valve Reliefs
Piston Type: Cast
Length: 51.50mm
Comp Height: 27.50mm - 1.70mm
Pin Size: 21.00mm x 58.00mm
Pin Type: Press Fit
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 1.20mm
2nd Ring Width: 1.20mm
Oil Ring Width: 2.00mm
Ring Set: 2C5297

Tick This part will fit the following Vehicles:

Mitsubishi Delica D5 CV1W (2.4 Litre 4 Cyl 4B12 DOHC 16v):
  • CV5W 4WD Van 3 Door [01/2007 to 11/2019] 126KW With Continuously Variable Transmission
  • CV5W FWD Van 3 Door [05/2007 to 12/2009] 126KW With Continuously Variable Transmission
Mitsubishi Delica D5 CV5W (2.4 Litre 4 Cyl 4B12 DOHC 16v):
  • FWD 3 Door [01/2007 to 12/2009] With Continuously Variable Transmission

Description

Nason, STD Size
