Mitsubishi >> Delica >> P25W >> 2.8 Litre 4 Cyl 4M40-T SOHC 8v >> Space Gear PD8W 05/1994 - 07/1997 3 Door Van >> Nason Piston & pin set

Nason Piston & pin set Fits Mitsubishi Delica P25W Space Gear PD8W Van [05/1994 to 07/1997] (2.8L 4M40-T 4 Cyl SOHC Turbo Diesel Inj)

Part
Nason logo

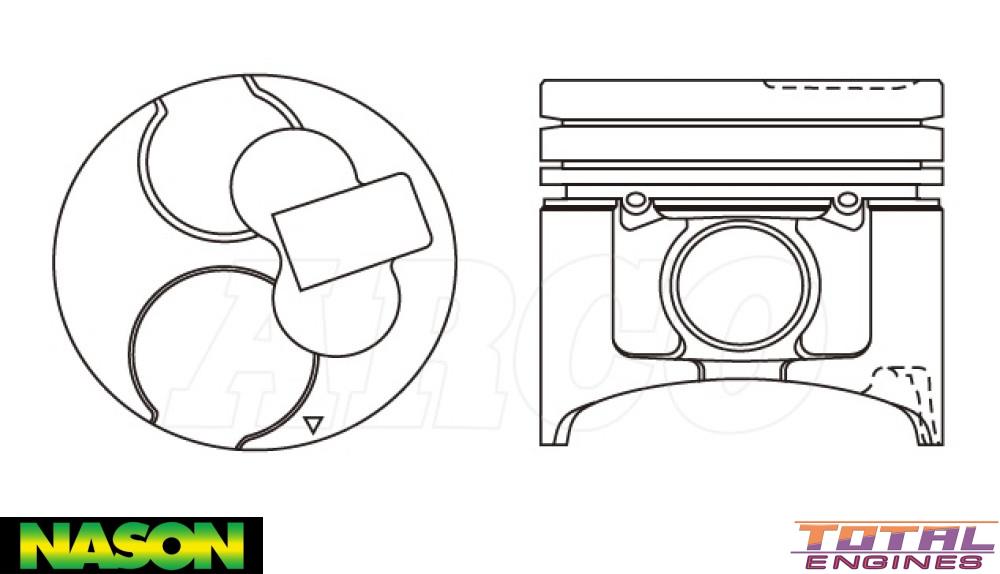

Nason Piston & pin set

Fitment Information:

Pistons Only- Does not Include Rings

Out Of Stock

Specifications
Piston Set: 4 x Pistons & Pins
Std Bore Size: 95.00mm
Size: STD
Head Type: Flat Top With Clover Leaf and 2 Valve Reliefs
Piston Type: Cast
Length: 91.60mm
Comp Height: 51.60mm, -3.00mm
Pin Size: 30.00mm x 77.90mm
Pin Type: Full Floating
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 2.30mm Double Keystone
2nd Ring Width: 2.00mm
Oil Ring Width: 3.00mm
Ring Set: 33952-STD

Tick This part will fit the following Vehicles:

Mitsubishi Delica P25W (2.8 Litre 4 Cyl 4M40-T SOHC 8v):
  • Space Gear PD8W 4WD Van 3 Door [05/1994 to 07/1997] 91KW With Auto or Manual Transmission
  • Space Gear PD8W 4WD Van 3 Door [07/1997 to 12/2006] 102KW With Auto or Manual Transmission
  • Space Gear PE8W 4WD Van 3 Door [05/1994 to 07/1997] 91KW With Auto or Manual Transmission
  • Space Gear PE8W 4WD Van 3 Door [07/1997 to 12/2006] 102KW With Auto or Manual Transmission
  • Space Gear PF8W 4WD Van 3 Door [05/1994 to 07/1997] 91KW With Auto Transmission
  • Space Gear PF8W 4WD Van 3 Door [07/1997 to 08/2004] 102KW With Auto Transmission

Description

Combustion Bowl OD

Alfin, With Oil Gallery Cooling & Anodized Head
