Mitsubishi >> Delica >> P25W >> 1.6 Litre 4 Cyl 4G32 SOHC 8v >> L033PV 01/1984 - 12/1986 3 Door Van >> Nason Piston & Pin Set

Nason Piston & Pin Set Fits Mitsubishi Delica P25W L033PV Van [01/1984 to 12/1986] (1.6L 4G32 4 Cyl SOHC CARB)

Part
Nason logo

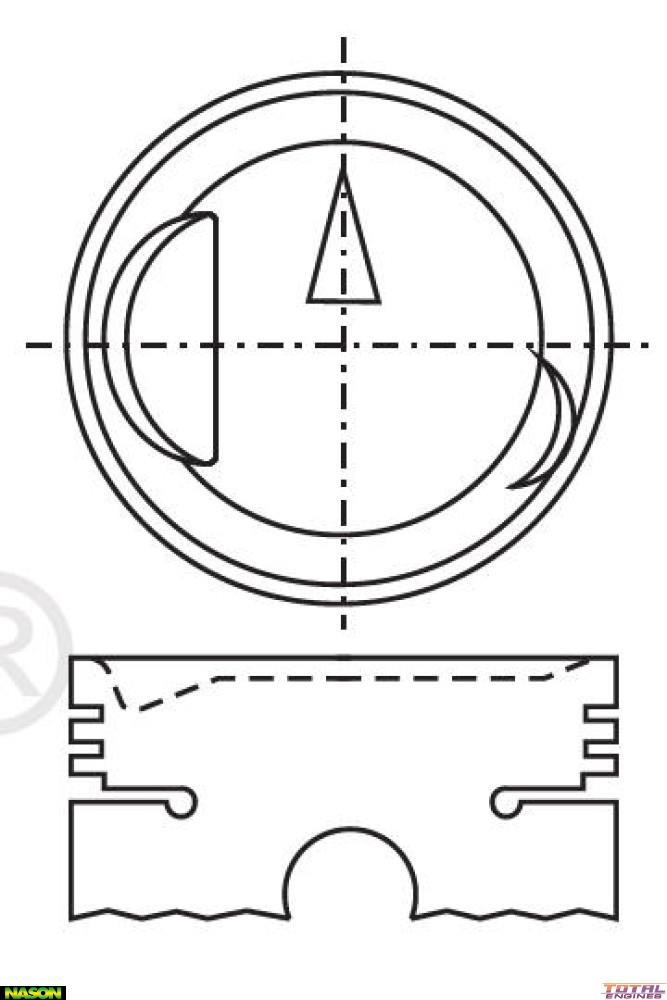

Nason Piston & Pin Set

Out Of Stock

Specifications
Piston Set: 4 x Piston & Pins
Std Bore Size: 76.90mm
Size: 0.50mm / .020"
Head Type: Dish Top with 2 Valve Reliefs
Piston Type: Cast
Length: 70.50mm
Comp Height: 33.60mm - 2.80mm
Pin Size: 19.00mm x 64.00mm
Pin Type: Press Fit
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 2.00mm
2nd Ring Width: 2.00mm
Oil Ring Width: 4.00mm
Ring Set: 2C675 or 675
Size: 0.50mm Oversize

Alert WARNING! This part will NOT FIT the following Vehicles:

Mitsubishi Delica (No Series) (1.6 Litre 4 Cyl 4G32 SOHC 8v):
  • L063P RWD Utility 2 Door [01/1982 to 12/1994] With Auto or Manual Transmission

Tick This part will fit the following Vehicles:

Mitsubishi Delica P25W (1.6 Litre 4 Cyl 4G32 SOHC 8v):
  • L033PV RWD Van 3 Door [01/1984 to 12/1986] With Manual Transmission

Description

Nason, 0.50mm Oversize
