Mitsubishi >> Delica >> P25W >> 3.0 Litre V6 6G72 SOHC 24v >> Space Gear PF6W 05/1994 - 09/2004 3 Door Passenger Van >> Nason Piston & Pin Set

Nason Piston & Pin Set Fits Mitsubishi Delica P25W Space Gear PF6W Passenger Van [05/1994 to 09/2004] (3.0L 6G72 V6 SOHC MPFI)

Part
Nason logo

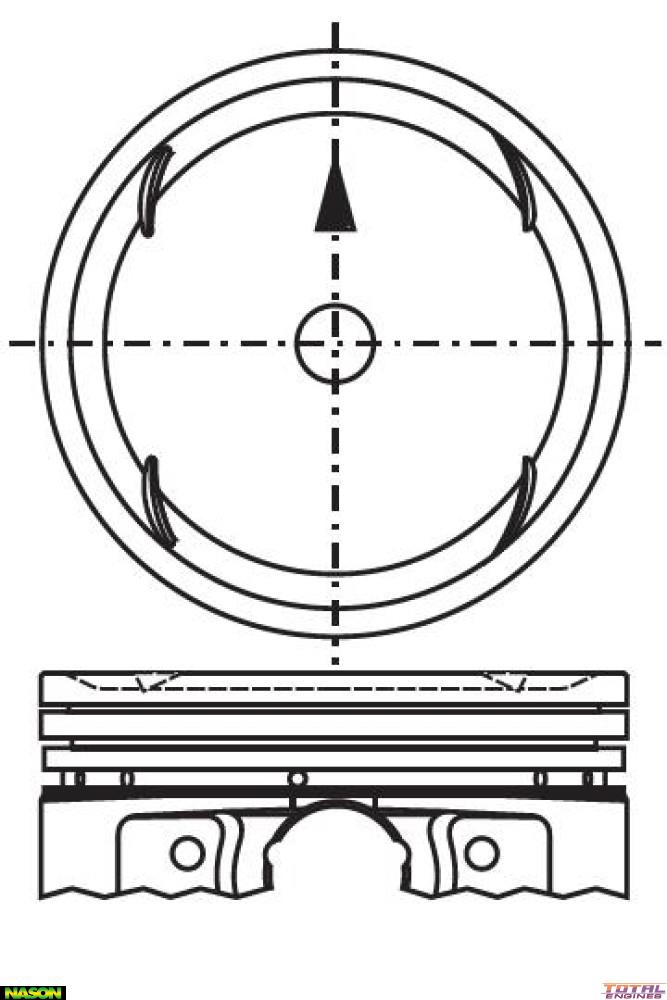

Nason Piston & Pin Set

Out Of Stock

Specifications
Piston Set: 6 x Piston & Pins
Std Bore Size: 91.10mm
Size: 0.50mm / .020"
Head Type: Dish Top with 4 Valve Reliefs
Piston Type: Cast
Length: 65.70mm
Comp Height: 31.80mm - 2.50mm
Pin Size: 22.00mm x 64.00mm
Pin Type: Press Fit
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 1.20mm
2nd Ring Width: 1.50mm
Oil Ring Width: 3.00mm
Ring Set: 2C4670
Size: 0.50mm Oversize

Tick This part will fit the following Vehicles:

Mitsubishi Delica P25W (3.0 Litre V6 6G72 SOHC 24v):
  • Space Gear PD6W 4WD Passenger Van 3 Door [05/1994 to 12/2006] 136KW With Auto Transmission
  • Space Gear PF6W 4WD Passenger Van 3 Door [05/1994 to 09/2004] 136KW With Auto Transmission

Description

Nason, 0.50mm Oversize
