Mitsubishi >> Express >> SF >> 2.4 Litre 4 Cyl 4G64 SOHC 8v >> SF3V38 08/1986 - 05/1990 3 Door Van >> Nason Piston & pin set

Nason Piston & pin set Fits Mitsubishi Express SF SF3V38 Van [08/1986 to 05/1990] (2.4L 4G64 4 Cyl SOHC MPFI)

Part
Nason logo

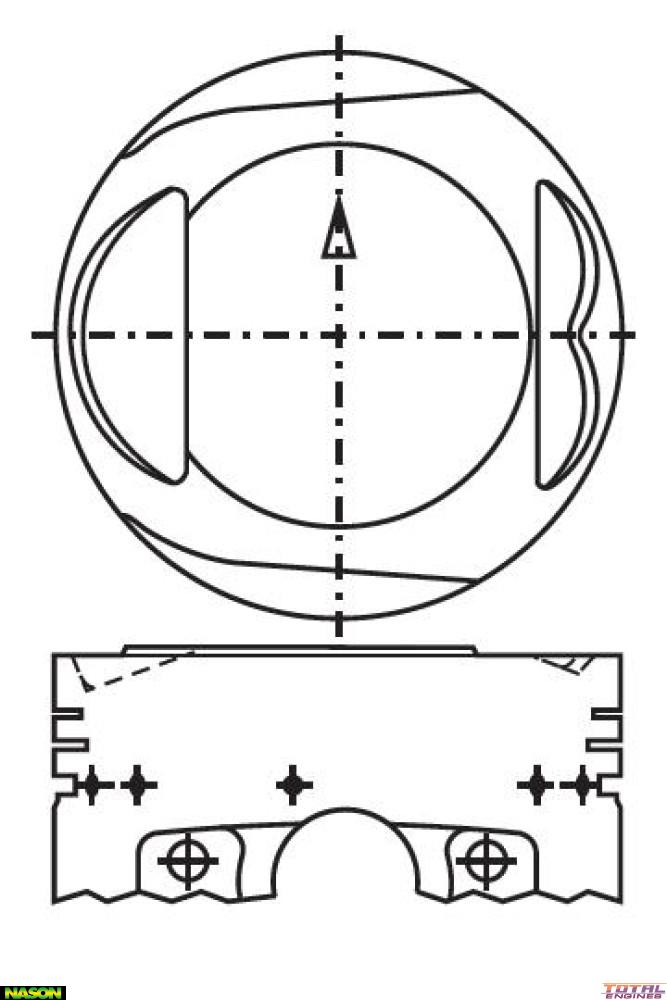

Nason Piston & pin set

Out Of Stock

Specifications
Size: 0.50mm Oversize
Ring Set: 2C4783
Oil Ring Width: 3.00mm
2nd Ring Width: 1.50mm
Top Ring Width: 1.20mm
Piston to Bore: See Label on Box
Skirt Coating: No
Pin Type: Press Fit
Pin Size: 22.00mm x 62.00mm
Comp Height: 35.00mm + 0.20mm
Length: 67.00mm
Piston Type: Cast
Head Type: Dome Top with 3 Valve Reliefs
Size: 0.50mm / .020"
Std Bore Size: 86.50mm
Piston Set: 4 x Piston & Pins

Tick This part will fit the following Vehicles:

Mitsubishi Express SF (2.4 Litre 4 Cyl 4G64 SOHC 8v):
  • SF3V38 4WD Van 3 Door [08/1986 to 05/1990] 81KW With Manual Transmission

Description

Nason, 0.50mm Oversize
